Compact “All-In-One” hybrid Audiophile system, with tube preamp stage and solid state power amplifier with Dual Mono construction of 190 Watts per channel into 8 Ohms (280 Watts into 4 Ohms) in Class AB and high bias switch for Class A-like operation in the delivery of the first Watts
– Dual Mono power supply stage with symmetrical design with two 300 VA toroidal transformers, filter capacitors and multiple voltage regulators dedicated to each channel – RJ45 ethernet network player and DLNA compatible Wi-Fi with the possibility of playing directly from NAS and any network server
– Advance PlayStream dedicated app for iOS / Android with streaming services including Spotify, Tidal, Qobuz, Deezer, TuneIn, internet radio and others
– CD player
– MC High / MC Low / MM phono stage with adjustable capacitance values
– DAB + digital and FM analog radio tuner
– 2x HDMI interfaces (1x direct connection to Blu-Ray / DVD players, 1x ARC)
– USB Type A socket for playback from Pen Drive (FAT32 / 128 GB)
– digital interface dedicated to the connection of a key module (optional, to be purchased separately) Bluetooth 5.0 X-FTB2 (codec aptX HD, aptX, AAC, SBC) or X-FT01 (codec aptX, AAC) </ p >
– headphone amplifier with 2x independent outputs (1x 6.3mm jack, 1x 3.5mm jack) and individual gain and impedance adjustment
– bypassable tone and loudness control circuit
– digital / analog converter based on TI PCM 1796 DAC with playback of DSD DoP formats up to 5.6 MHz and PCM up to 32 bit / 192 kHz

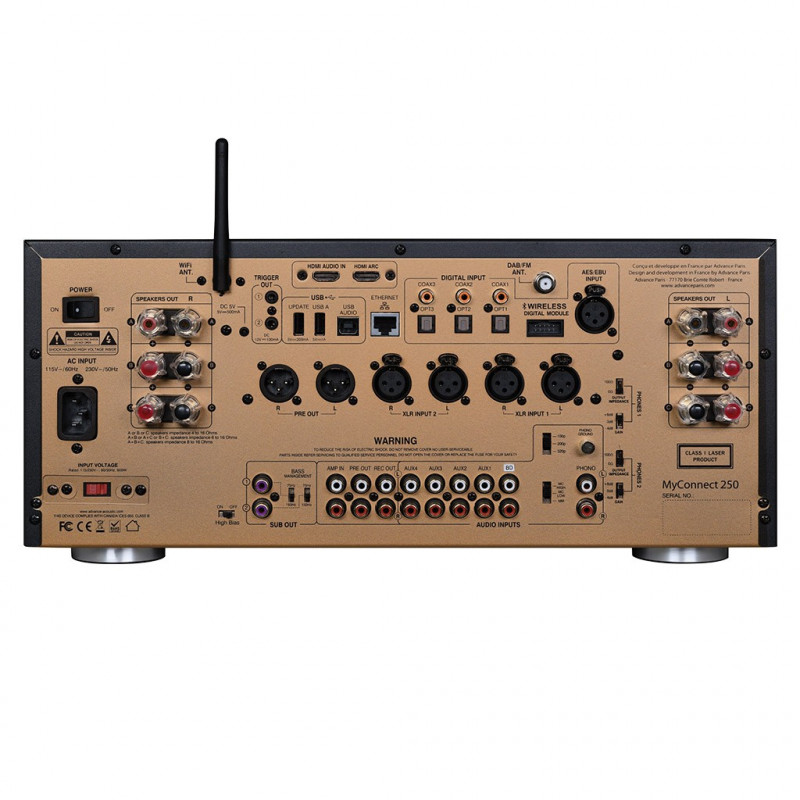

– pre and final separation with XLR balanced L / R Pre Outs and dedicated L / R Amp In and RCA unbalanced Pre Out connectors
– digital audio inputs: 2x HDMI (1x ARC), 1x USB type B with XMOS asynchronous receiver (DSD128, PCM 32/192), 1x AES / EBU XLR, 3x S / PDIF coaxial electrical RCA (24/192) , 3x optical Toslink (24/96)
– analog L / R audio inputs: 2x XLR balanced, 5x unbalanced RCA, 1x phono MC / MM
– 2x dedicated RCA subwoofer outputs with selectable frequency cuts (75 Hz / 150 Hz) – REC Out L / R
– pre and final separation with XLR balanced L / R Pre Outs and dedicated L / R Amp In and RCA unbalanced Pre Out connectors
– triple set of speaker output terminals
– dual port Trigger Out
– alphanumeric display and analog VU-Meter panel
– front panel in elegant thick methacrylate
– remote control included
– black finish
– dimensions (W x H x D) 430 x 195 x 455 mm
– weight 18.6 Kg
