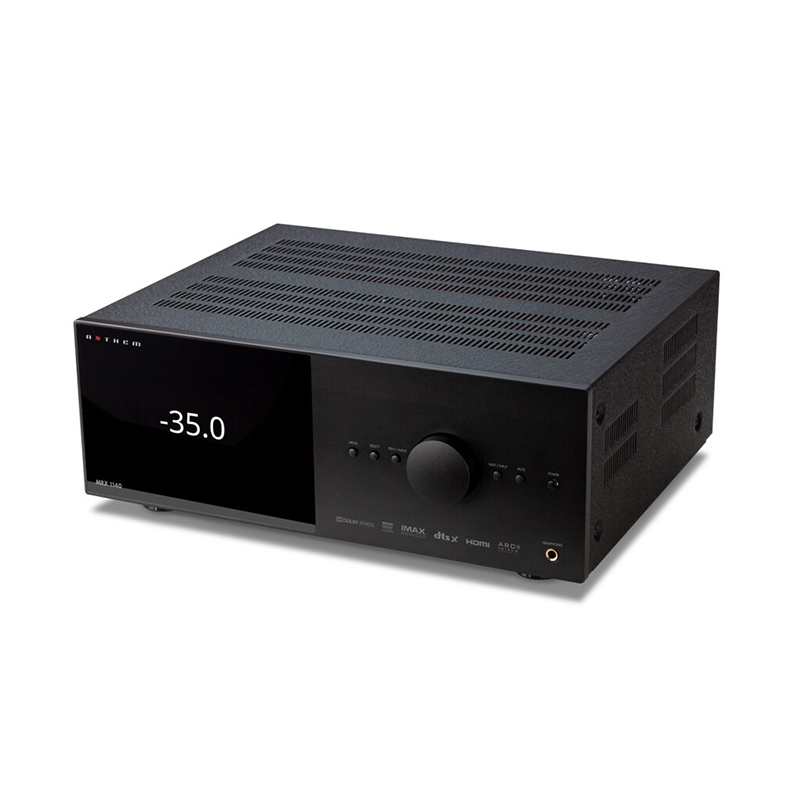

Anthem’s MRX A/V Receivers are about maximizing performance for the money. Building on the feature set of our previous models, we’ve added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.

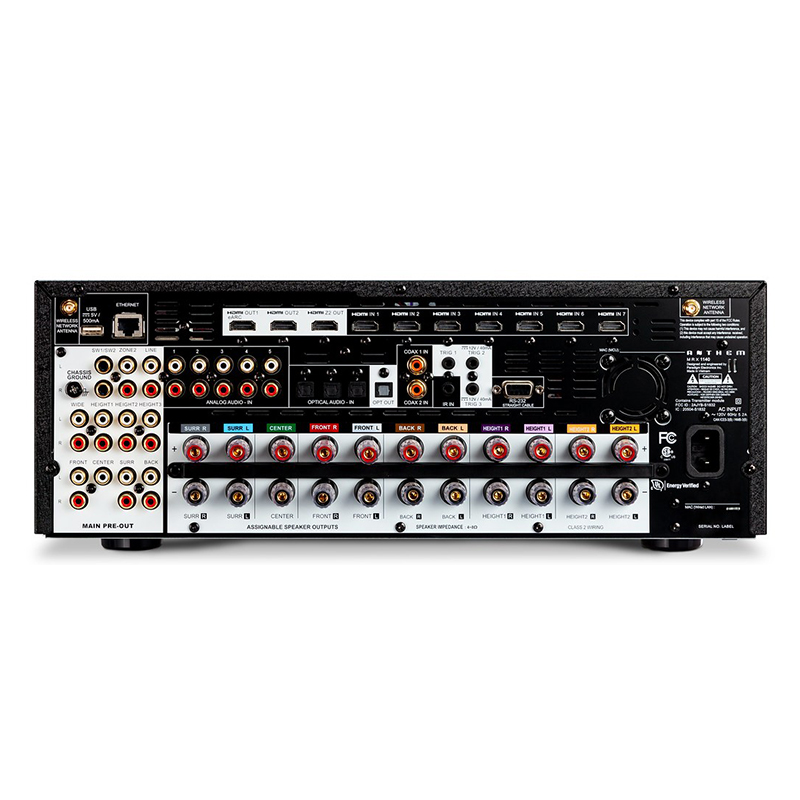

The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 HDMI inputs and 2 outputs, plus eARC. Ultra HD signals are passed through unaltered up to 18.2 Gbps with Dolby Vision, HDR and Hybrid Log Gamma support.
Toroidal Power Supply
32-Bit/768 kHz DAC (AKM AK4458VN)
Two Independent Subwoofer Outputs Wi-Fi / Ethernet Enabled
IP and Serial Control Dolby Atmos
DTS:X Pro, DTS:X, DTS Virtual:X HMDI eARC
Apple AirPlay 2
Google Chromecast (Audio) Bluetooth v4.2
DMI & VIDEO
Dolby Vision IMAX Enhanced
HDMI 2.0b & HDCP 2.2
4:4:4 Subsampling @ 4K60 (18.2 Gbps) High Dynamic Range (HDR)
Hybrid Log Gamma (HLG) BT.2020 Color Gamut
4K 50/60 Switching Zone 2 HDMI Output
The Anthem Advantage
Backed by over 35 years of home-grown,hands-on design, and innovative audio engineering experience, Anthem products provide an unprecedented level of reliability and functionality; delivering one of the industry’s highest performance/price ratios. This is just one reason why Anthem electronics are the choice of knowledgeable audiophiles, professional musicians and engineers the world over.
NEW! ARC Genesis Software
ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.
ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.
ARC Genesis works with Mac or PC and is the most comprehensive method of transforming the sound in your room. Includes many new features. Download the FREE software at AnthemARC.com.
Design
At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.
Robust Integration
The Anthem MRX 740 features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices including:
Channel Re-Assignment
MRX Series Receiver channels can be assigned in many ways. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).
Configure amplifier channels for your system’s needs, then perfect the presentation with ARC Genesis.
Introducing anthem Web User Interface
Anthem Web User Interface is now built in to all MRX Receivers and AVM Processors. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the main or second zone on and off, adjust volume, change audio modes or tweak channel trims for a perfect surround sound experience. Web UI can also be used to calibrate speaker delays and levels and configure network settings/control options. Source devices can be renamed, simplifying set up by enabling the elimination of unused inputs. Installers can import and export files to make remote management simple and convenient.
PREAMPLIFIER
Maximum Output (<0.1% THD)
5.2 VRMS, 7.1VRMS
Frequency Response
20Hz – 30KHz +/-0.2dB
Frequency Response, Analog-Direct
N/A
THD+N (2 Vrms output)
-100 dB
S/N Ratio (2 Vrms output, IEC-A filter)
110 dB
PREAMPLIFIER + AMPLIFIER (1 W output)
MRX 1140 / MRX 740
SNR: 91 dB ch 1-5, 86dB others
MRX 540
SNR: 91 dB ch 1-5
SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.
MAXIMUM CONTINUOUS OUTPUT (1% THD)
MRX 1140
MRX 740
MRX 540
Channels 1-5, Two Driven into 8 Ohms
140 W
140 W
100 W
Channels 1-5, Two Driven into 6 Ohms
170 W
170 W
130 W
Remaining Channels, Two Driven into 8 Ohms
60 W
60 W
n/a
Remaining Channels, Two Driven into 6 Ohms
75 W
75 W
n/a
POWER CONSUMPTION
MRX 1140
MRX 740
MRX 540
Typical Load
570 W
485 W
365 W
Standby
0.3 W
0.3 W
0.3 W
Standby IP Control Enabled
1.8 W
1.8 W
1.8 W
Standby HDMI Bypass Enabled
4.9 W
4.9 W
4.9 W
DIMENSIONS
Height (without feet)
6″ (15.24 cm)
Height with Rackmount Kit
4U
Width
17″ (43.18 cm)
Depth (including wifi ant not power cord)
14-1/2″ (36.4 cm)
WEIGHT
MRX 1140
33.6 lb (15.2 Kg)
MRX 740
33.2 lb (15.1 Kg)
MRX 540
28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version:
In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version:
In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
