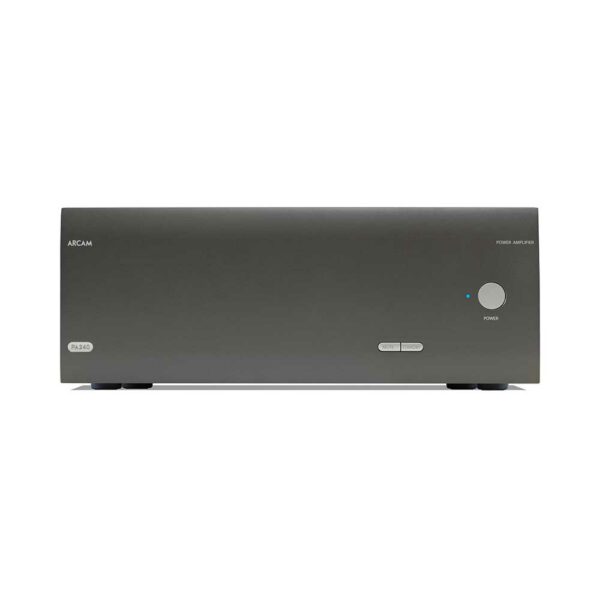

Arcam PA240 Power Amplifier

$5,795.00

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

In Stock at Supplier

Exceptional Power, Immersive Sound

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

  • 2 Channel Power Amplifier
  • 2 x 380W Class G amplification
  • 1 x 790W Class G bridged mode
  • Class G amplification with 50W of class A operation
  • Toroidal transformer
  • Stereo, Dual Mono or Bridged operation
  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs
Continuous power output at 0.2% THD per channel
2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz 380W/225W
1 channel driven, 8Ω bridged mode, 20-20kHz 790W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.001%
Inputs
RCA Type XLR Type
Input sensitivity 200W / 8Ω 1.15V RMS 2.3V RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω 110dB
Input impedance 10kΩ
Frequency response 20 – 20kHz +/-0.05dB
General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D x H (including feet, control knob and speaker terminals) 433 x 425 x 177mm
Weight (net) 18kg
Weight (packed) 19.7kg
