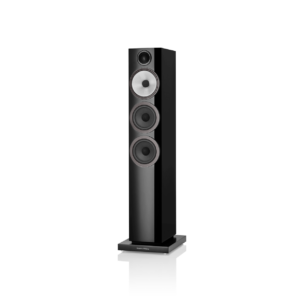

Bowers and Wilkins 704 S3 Floor Standing Speakers $8,999.00
Bowers and Wilkins 706 S3 Stand Mount Speaker $4,499.00

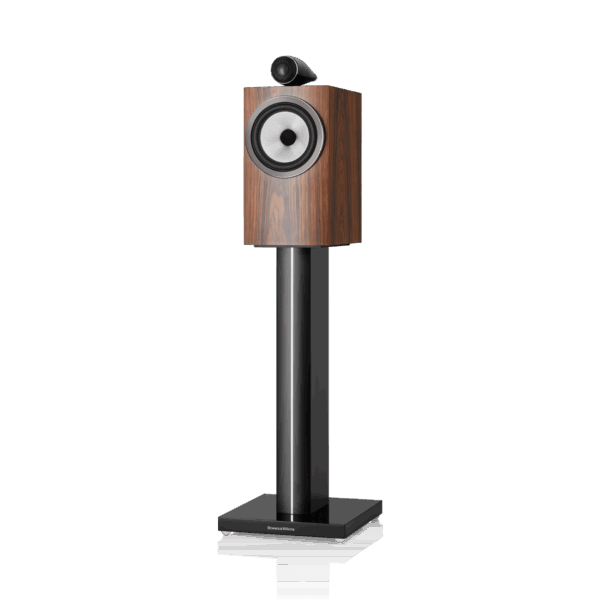

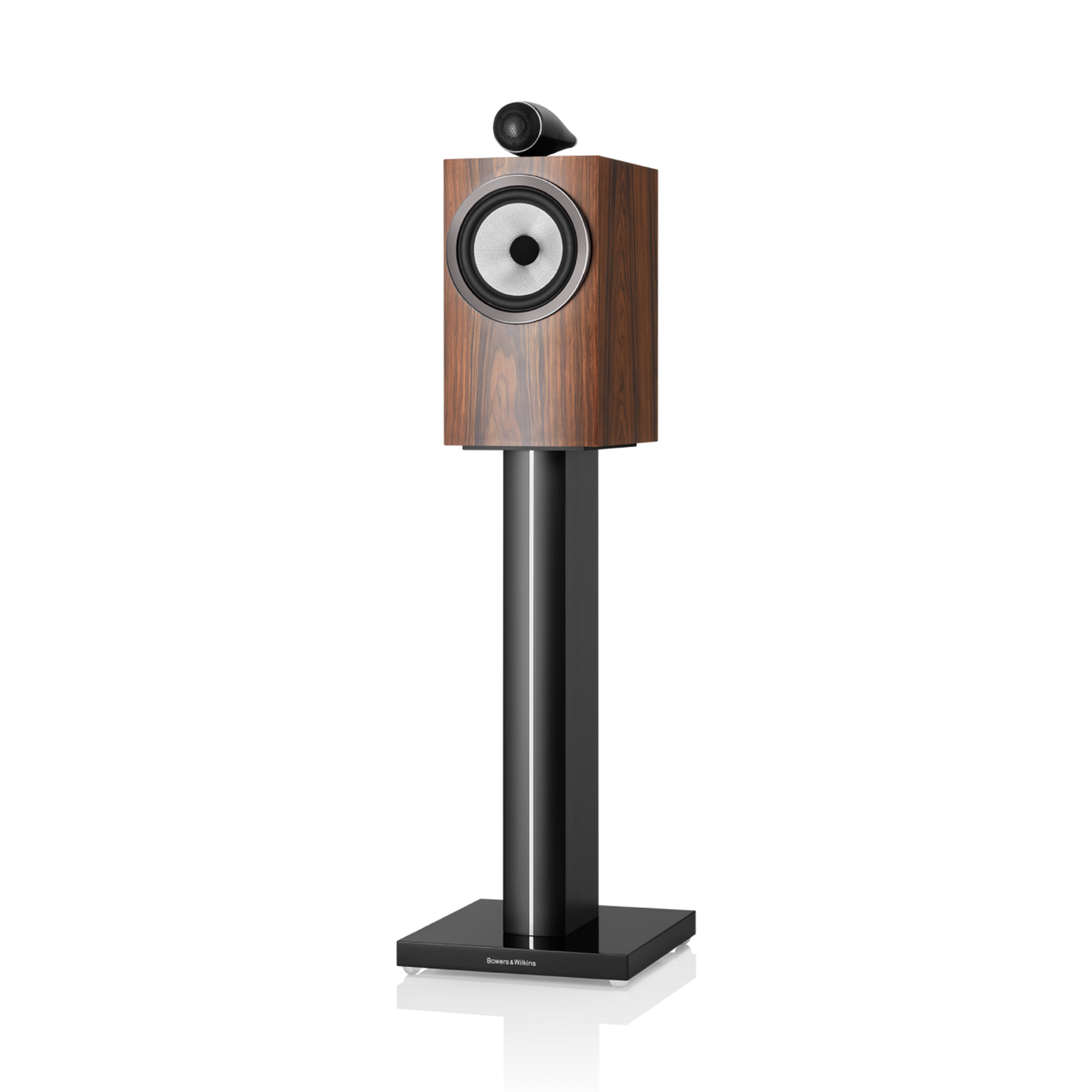

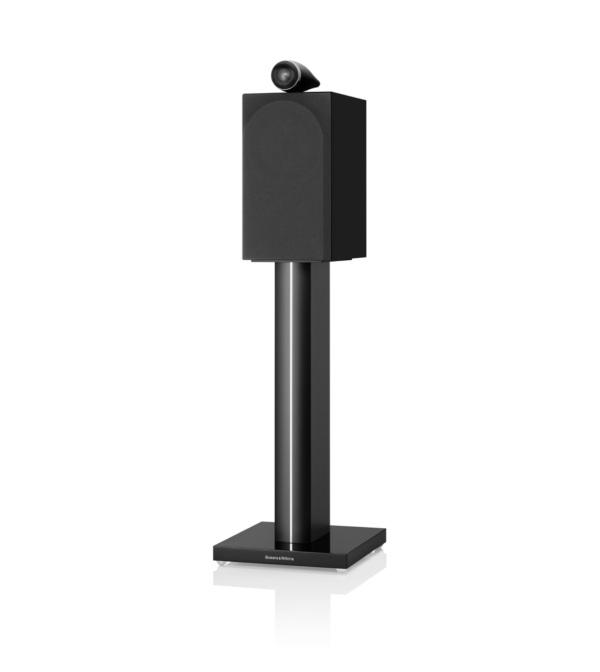

Bowers and Wilkins 705 S3 Stand Mount Speaker

$6,999.00

705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver.

* Stand(s) not included.

Hi there! How can we be of assistance?

Experience the detail

This uncompromising two-way speaker reveals subtle nuances in music others miss. Its high-performance features include a solid body Tweeter-on-Top design borrowed from the 800 Series Diamond.

A house for high
frequencies

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Size & weight

Dimensions Height: 345mm (13.6 in) cabinet only
413mm (16.3 in) including tweeter
Width: 192mm (7.6 in) cabinet only
Depth: 297mm (11.7 in) cabinet only
337mm (13.3 in) including grille and terminals
Net weight 9.58kg (21.1 lb)

Technical details

Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass / midrange
Flowport™
Max recommended cable impedance 0.1Ω
Description 2-way vented-box system
Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range 45Hz and 33kHz
Frequency response 50Hz – 28kHz ±3dB
Sensitivity 88dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 150Hz – 20kHz
Nominal impedance 8Ω (minimum 3.7Ω)
Recommended amplifier power 30W – 120W into 8Ω on unclipped programme

Finishes

Cabinet finishes Gloss Black
Satin White
Mocha
Grille finishes Black
Grey (Satin White only)
