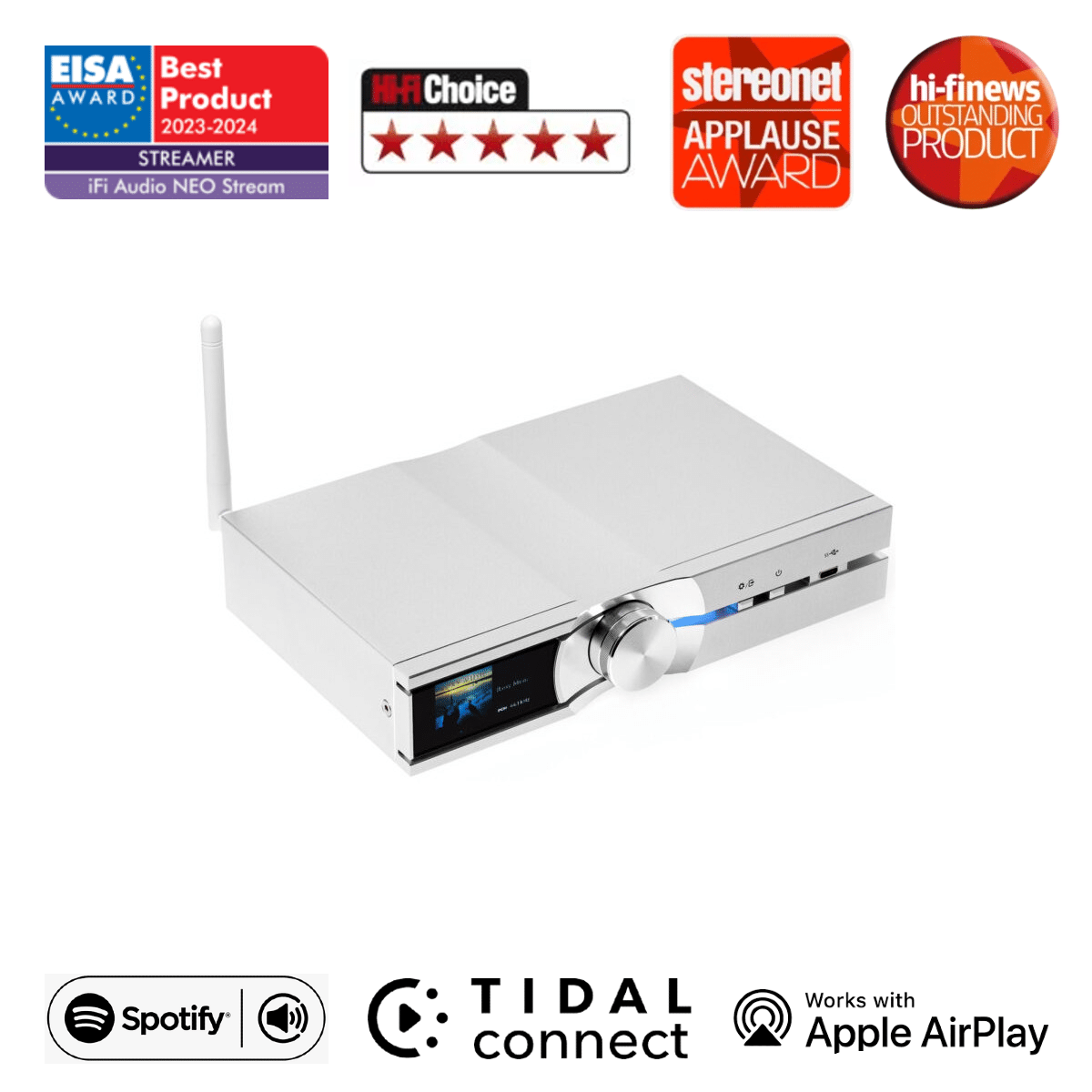

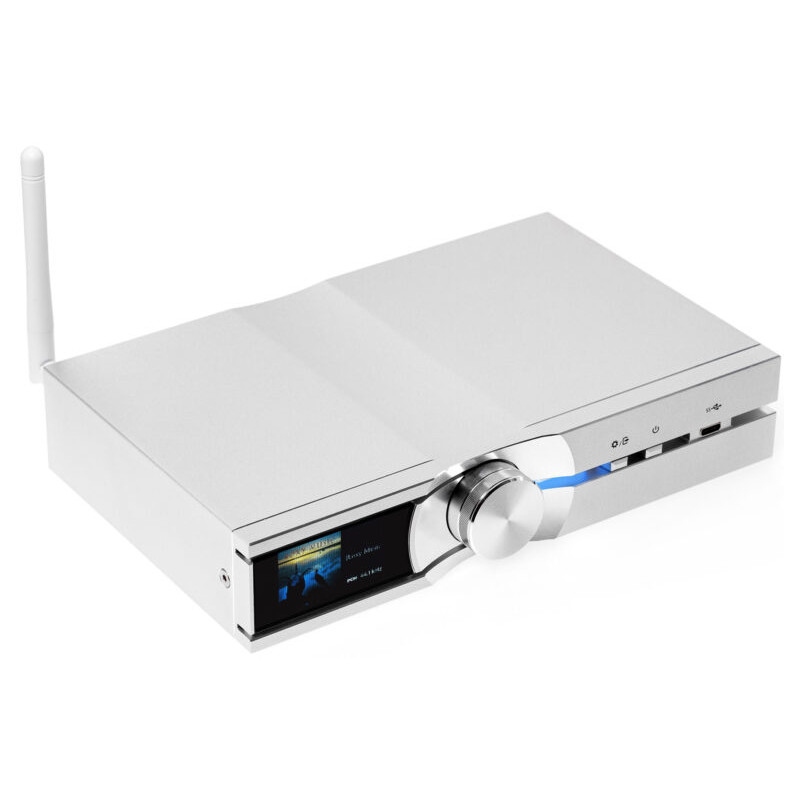

iFi NEO with High Resolution Streamer DAC

$2,599.00

Functionally and sonically, it’s the ideal streamer for passionate music lovers who want to experience their music with exceptional sound quality through their own choice of control app or music platform. Without the exorbitant price tag.

Available On backorder

Simply Seamless Streaming

  • Roon Ready –  Roon Ready certification means the NEO Stream slots straight into a Roon audio environment and works seamlessly with Roon software.
  • DNLA/UPnP – Use your choice of any DLNA/UPnP compatible app – BubbleUpnP, connect, Audirvana and so on – to control the NEO Stream and access audio content from online services.
  • Tidal Connect and Spotify Connect –  Stream straight from these integrated online music services.
  • Apple Airplay – Easy streaming from Apple devices.
  • NAA operation – Serious enthusiast? The NEO Stream can operate as a Network Audio Adapter. It directs packets of audio data received over Wi-Fi or Ethernet cable straight to the connected DAC without applying processing.
  • NAS drive – stream from a local storage device using the ‘Stream-iFi’ app.
  • USB ports use our ANC II active noise cancellation technology
  • S/PDIF outputs incorporate iPurifier technology
  • The digital signal is  regulated by our femto-precision GMT (Global Master Timing) clock to eradicate jitter
  • The retina-grade TFT display boasts SilentLine design so no electrical noise interferes with the audio signal
  • Circuit components with low ESR, high linearity and low noise mean great sound quality

Voltage regulators with high PSRR (Power Supply Rejection Ratio), low idle current and low dropout equal low power supply noise and a synchronous 1.2MHz high-speed power supply controller to improve filtering efficiency mean power supply noise is vanishingly low.

The NEO Stream has more clarity and texture, and a more dynamic and engaging performance – quite simply, you hear more of the music, just as the artist intended.

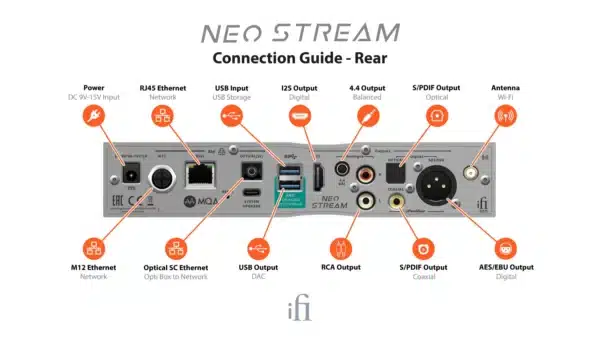

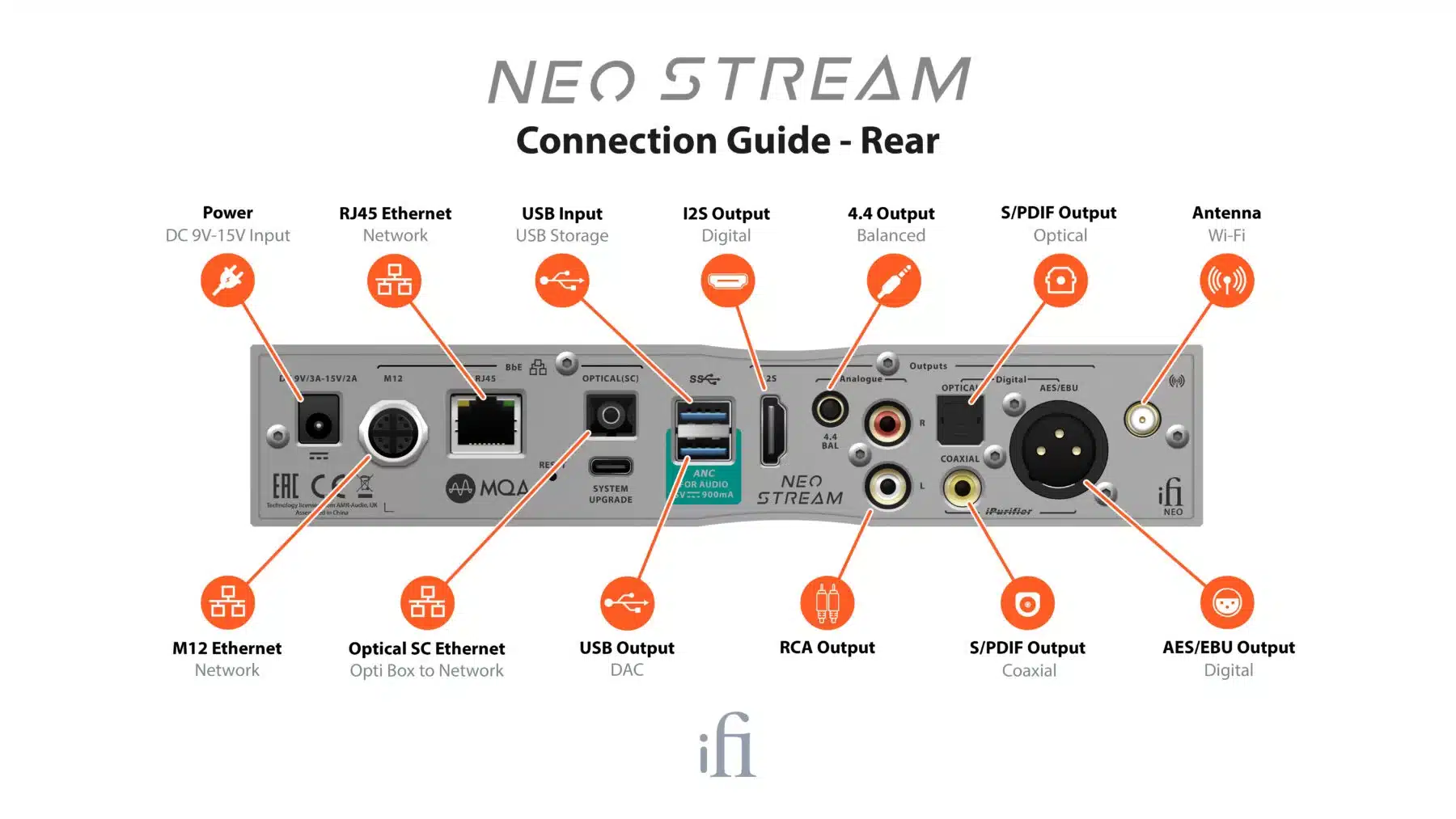

Inputs

  • Dual-band Wi-Fi reception (2.4GHz and 5GHz) with 802.11a/b/g/n/ac support
  • Gigabit Ethernet (LAN) – 1x RJ45; 1x M12; 1x Optical LAN (see below for more information)
  • 2x USB-A (USB2.0 and SuperSpeed USB3.0 supported)
  • 1x USB-C system update port (OTA – Over The Air – updates also available)

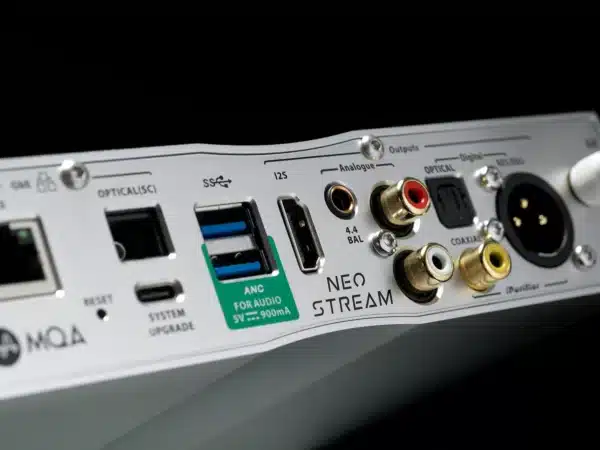

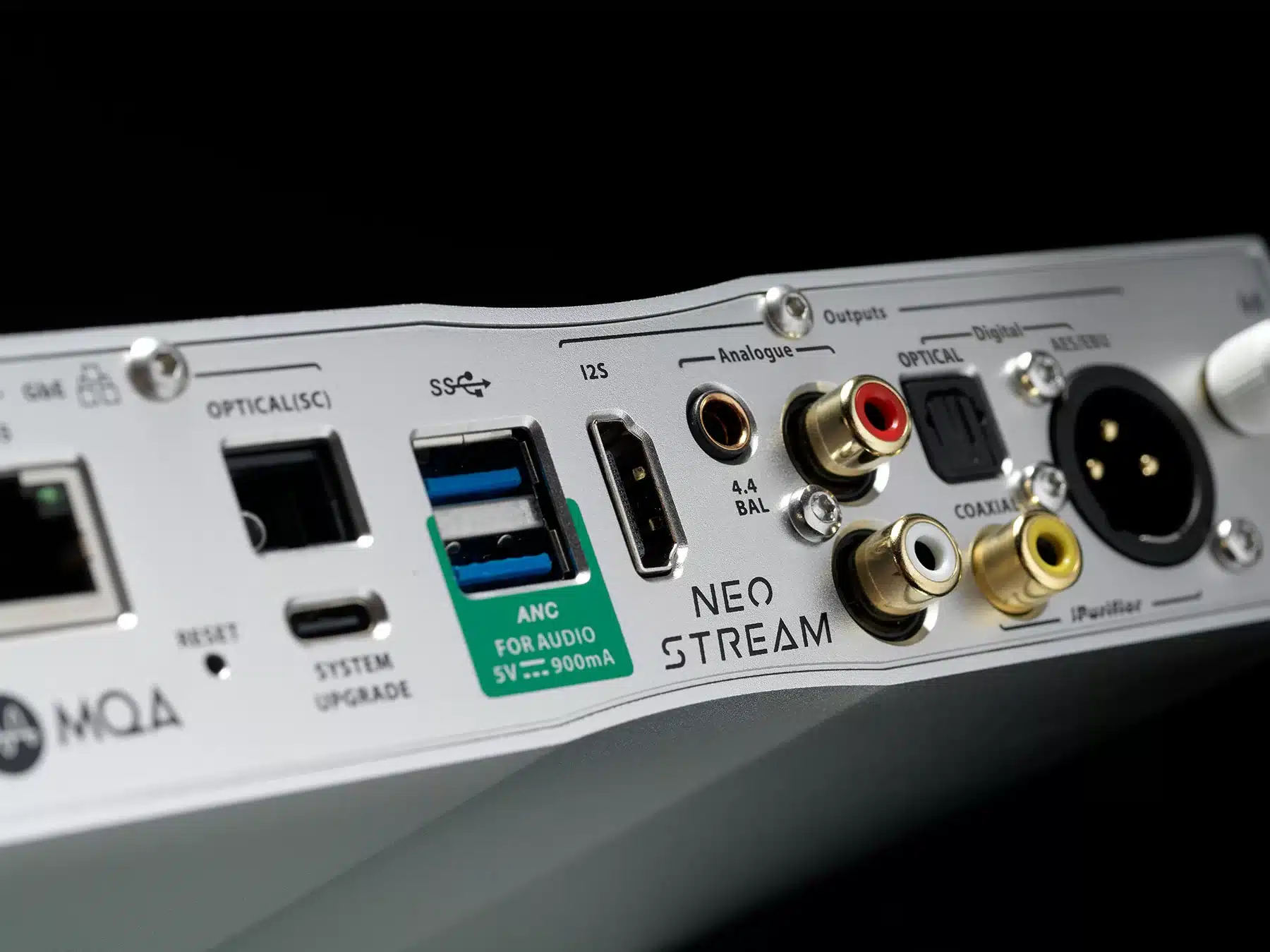

Outputs

  • Analogue – 1x stereo RCA; 1x 4.4mm balanced
  • Ultra-res digital (PCM 768kHz, DSD512) – 1x HDMI-I2S; 1x USB-A (USB3.0)
  • Hi-res S/PDIF digital (PCM 192kHz) – 1x optical; 1x coaxial; 1x AES/EBU
Wi-Fi
Ethernet (M12 X-code 8-pin/RJ45/Optical)
USB-A and USB-C (front panel) (USB DISK, HDD etc.)
Formats DSD: up to 512 / 22.6MHz
PCM: up to 768kHz
MQA: Full Decoder
Analogue output Balanced 4.4mm 4V RMS / UnBAL RCA 2V RMS
Digital output USB-C (front panel)
USB3.0 Type-A Socket x2 (USB2.0 compatible)
S/PDIF Optical (PCM up to 192kHz, 24-bit)
S/PDIF Coaxial (PCM up to 192kHz, 24-bit)
AES/EBU (XLR – single link, PCM up to 192kHz)
I2S via HDMI connector Pinout:
1) Data –
2) Gnd
3) Data +
4) Bck +
5) Gnd
6) Bck
7) Wck –
8) Gnd
9) Wck +
10) Mck +
11) Gnd
12) Mck
13,14,15,16) DSD Enable; L=PCM, H=DSD
17) Gnd
18) 5V Power Enable Output; L=O, H=On
19) N/C
20,21,22,23) GND
Output Impedance Balanced: ≤74Ω
UnBAL: ≤37Ω
SNR <-106dB(A) @ 0dBFS (BAL/UnBAL)
THD + N <0.0025% @ 0dBFS (BAL/UnBAL)
Power supply requirement DC 9V/2.0A, 12V/1.8A, 15V/1.2A* (centre pin +)
Power consumption <0.5W idle, 14W max.
Dimensions 214 x 151 x 41 mm (8.4″ x 5.9″ x 1.6″)
Net weight 1.0 kg (2.26 Ibs)
Limited Warranty 12 months**
*A power supply unit must be able to deliver minimum rated repetitive current
**12 months typical or as permitted/required by local reseller laws.
***Specifations are subject to change without notice.
