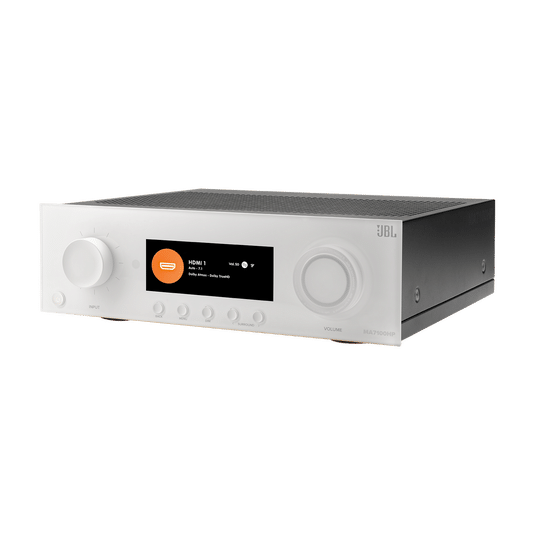

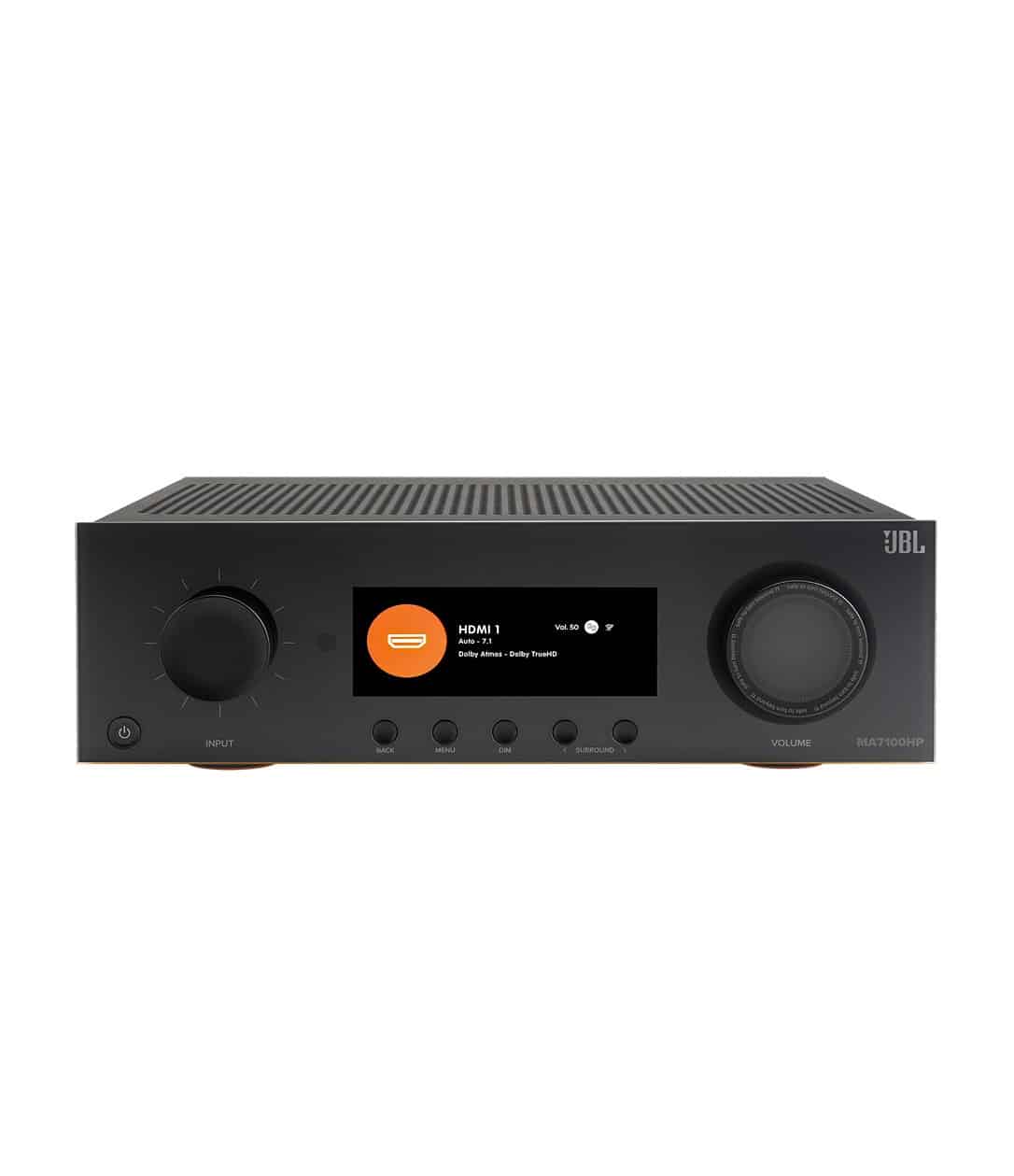

JBL MA7100HP 7.2-channel 8K High Performance AV Receiver

$2,199.00

Bring both music and movies to life with true high fidelity.

Stunning audio and video performance

High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

High-performance immersive surround sound

Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity.

The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA7100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allows integrators and power-users to optimize the system to their personal room acoustics.

Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third party control system integration.

HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
3
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes , Yes
File format
MP3 / MPEG-4 AAC
Pure Analog
Yes
EZ Set EQ
Yes
Front channel bi-amp
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 – 240V, 50–60Hz
Max. power consumption
700W
Standby power consumption
<0.5W

Channels
7.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
125W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
125 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
175 W RMS

Dimensions incl. feet and speaker terminals (H x W x D)
5.3″ x 17.0″ x 15.6″ (135.0mm x 432.0mm x 396.4mm)
Weight
16.4lb (7.4kg)

HDMI Input/Output
6/ 2
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Bluetooth transmit
Yes

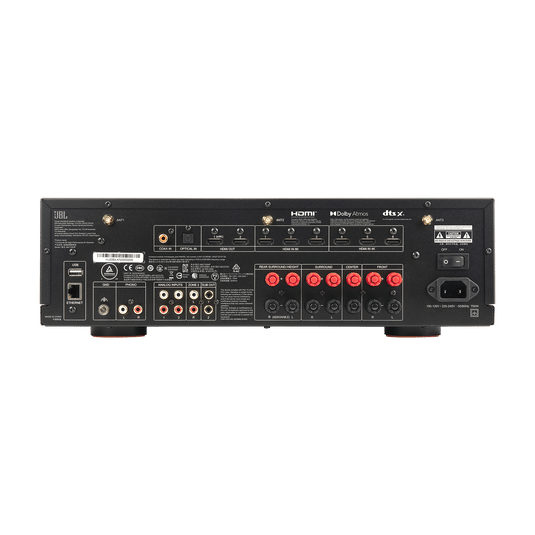

Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA)
Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet
RJ45 Gigabit, WiFi Onboard

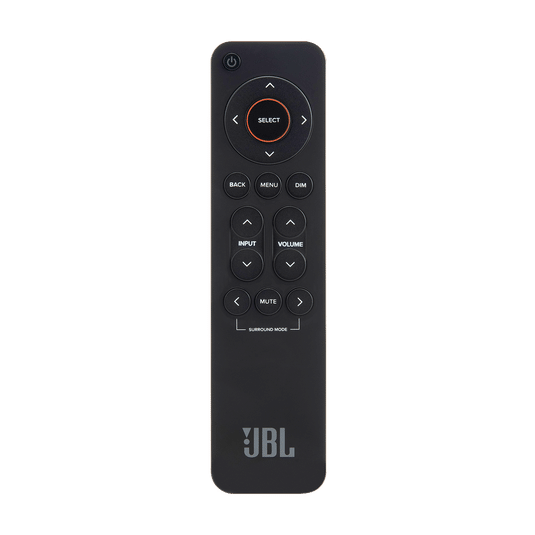

  • 1x IR Remote
  • 2x AAA batteries
  • 1x Bluetooth antenna
  • 2x Wi-Fi antenna
  • 1x Power Cord
  • 1x Quick-Start Guide
  • 1x Safety Sheet
