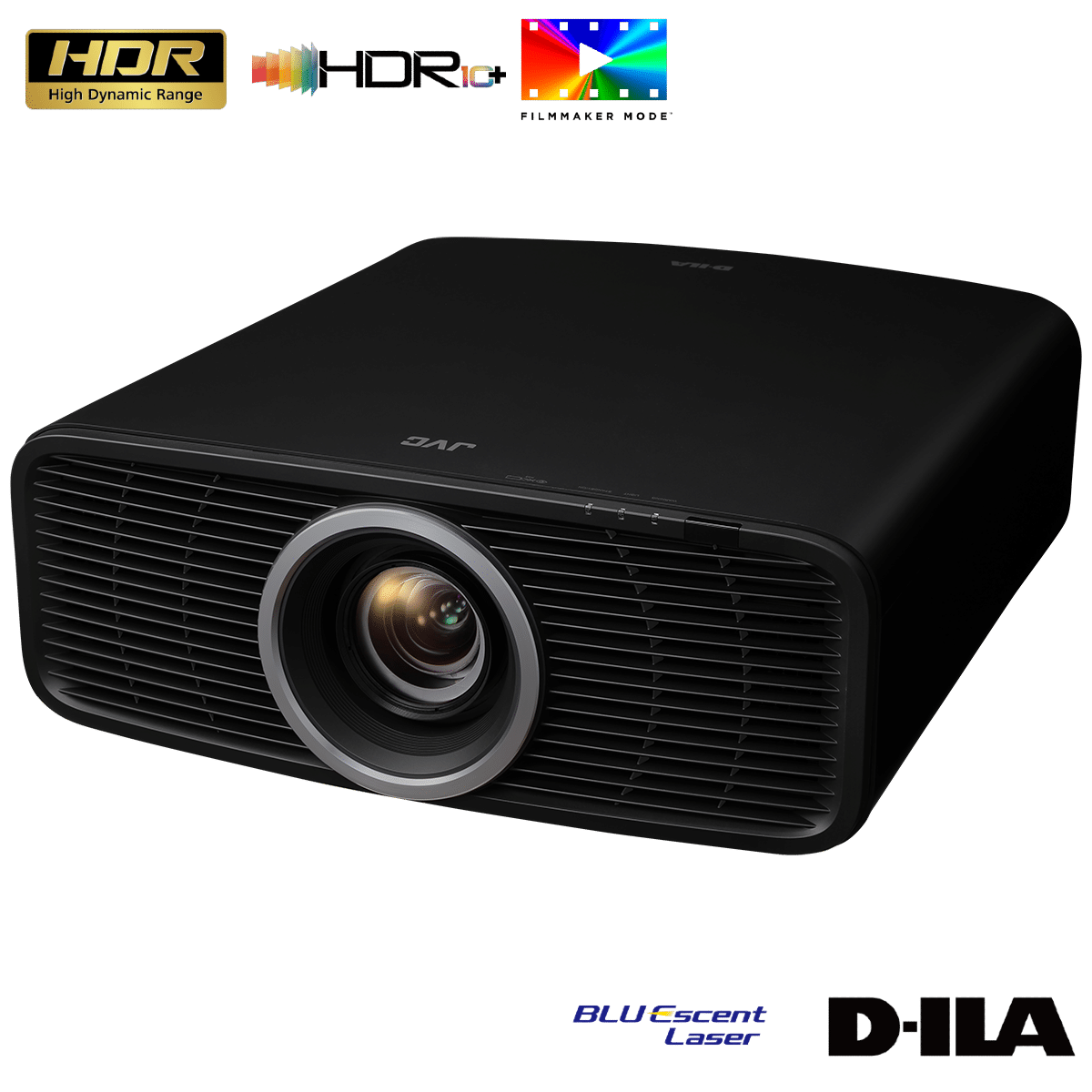

JVC DLA-NZ500

$10,999.00

0.69-inch Native 4K D-ILA Devices (x3) / 40,000:1 native contrast / New BLU-Escent Laser 2,000-lumen / Gen2 Frame Adapt HDR with Deeper Blacks / New Picture mode “Vivid”

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Available On backorder

Gen2 Frame Adapt HDR Function for Brighter and More Colorful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

  • Completely redesigned interior and exterior results in world’s smallest native 4K projector
  • New BLU-Escent Laser Light Source
  • New 80mm, 15-element, 11-group high-quality lens
  • Native Contrast Ratio of 40.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
  • 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
  • HDR10+ metadata supported to automatically reproduce images as the creator intended.
  • Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
  • Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
  • Color Management System with 6-axis Matrix
  • Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
  • 0.69-inch 4K D-ILA (4096 x 2160) device x 3
  • High brightness of 2,000 lm provides vibrant and dynamic images
  • FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
  • ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
  • Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
  • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
  • Auto-Calibration Function using an optical sensor.
  • New picture mode ”Vivid” for SDR Images
  • DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience
Device
D-ILA Technology
Yes
Chip Type
0.69-inch 4K D-ILA device
Native Resolution
4096 x 2160
Number Of Chips
3
Display Resolution
4096 x 2160
Light Source
Laser [1]
Yes
Type
BLU-Escent Laser Diode
Life Time (Standard Mode)
20000 hours
Brightness
2000 lm
Dynamic Contrast
∞ : 1
Native Contrast
40000 : 1
Dynamic Light Power control
Yes
Modes
Low,High,Balance,Off
Manual Aperture
Yes
Range
-15 (stops down) to 0 (opens up)
100% REC 709
Yes
Color Bit Depth
12 bit
ISFccc Certification [2]
Yes
HDR
HDR10
Yes
HDR10+ [3]
Yes
Frame Adapt HDR [4]
Yes
HLG
Yes
Mastering Info Display
Yes
Info data
MaxCLL, MaxFALL , DML
HDR Picture Modes
BT.709 / BT.2020 / DCI / HDR
Deep Black Tone Control
Yes
Lens
Zoom
1.6 x
Throw Ratio
1.34 – 2.14 (16:9)
1.26 – 2.01 (17.9)
Diameter
80 mm
Material
Build
15-element, 11-group.
Lens Shift
Yes
Range Horizontal
± 28 %
Range Vertical
± 70 %
Motorized Zoom
Yes
Motorized Shift
Yes
Motorized Focus
Yes
Projection Display size (diagonal)
60 – 200 inch
Memory Function
Yes
Number of user presets
5
Lens Cover
Yes
HDMI
HDMI [6]
Yes
Number of Inputs
2
Data Rate
32 Gbps
HDCP Version
2.3
4K60P signal input
Yes
Video Signal range
480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range
640×480, 800×600, 2048×1080, 1600×1200, 1920×1200, 2048×1536, 2560×1440
Input Level Adjustment
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range
Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes
Standard, Option1 , Option2  (older hardware may need to use Option1 or Option2 settings)

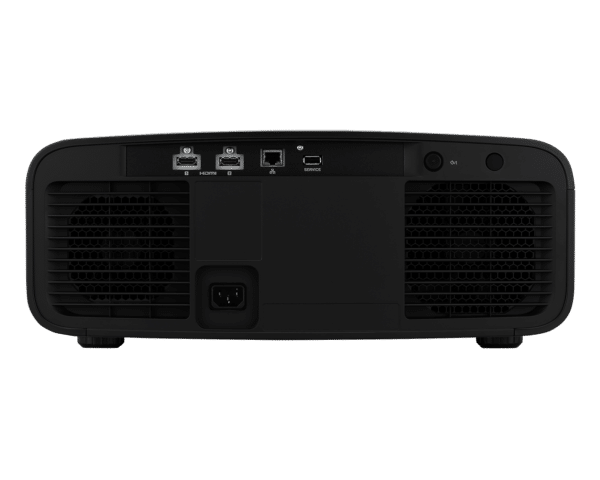

Connections
Connector
Power
Connector
LAN
Yes
Connector
RJ45
Connector
Service
Yes
Connector
USB (Type A) for firmware update or backup
Picture Settings
Picture Modes
Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures
Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth
12 bit
Gamma Adjust
HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, 3 Custom modes
Color Management
6-Axis adjustable CMS
MPC
Yes
Filmmaker Mode [7]
Yes
Low Latency Mode
Yes
Auto Calibration
Yes
Optional Probe needed
Yes
Installation Mode
Yes
Number of modes
5
Included settings
Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes
4 Modes (A, B, C, D)
Control4 SDDP
Yes
Power & Environment
Power Requirement
AC100-240V, 50/60Hz
Projector in Use
280W
Standby
Eco-mode: 0.25W
Network Standby
1.40W (LAN)
Switchover time
Approx. 15 min. (To standby or networked standby; default)
Fan Noise
23 dB
Eco Mode
Yes
Standby Timer
Yes
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80%
Installation Angle
Horizontal +/- 10 degree / Vertical +/- 10 degree
Installation Height
Below 2,000 m
In the box
Remote Control
Yes, RM-MH27
Quick Guide
Yes
Power Cord
Yes
Batteries
Yes, 2 x AAA-size batteries
Dimensions & Weight
Product Dimensions (WxHxD)
450 x 180 x 479 (mm)
Product Weight
15 Kg
Package Dimensions (WxHxD)
585 x 361 x 600 (mm)
Package Weight
18.9 Kg
