JVC DLA-NZ800
$27,499.00
CLICK HERE FOR A REVIEW BY SIMPLE HOME CINEMA!
JVC DLA-NZ800 projector review: class-leading performance plus 8K and 3D | TechRadar
Gen3 0.69-inch Native 4K D-ILA Devices (x3) / 100,000:1 native contrast / New BLU-Escent Laser 2,700-lumen / Gen2 “8K/e-shiftX” / Gen2 Frame Adapt HDR with Deeper Blacks / New Picture mode “Vivid”
The NZ800 also doesn’t have a direct competitor, and the closest is the Sony VPL-XW7000ES in the UK (£12,999) or VPL-XW6000ES in the US ($11,999). While the XW7000ES is rated at 3,200 lumens, the XW6000ES only hits 2,500 lumens, and neither has support for 8K, 4K/120p or HDR10+, nor do they have HDMI 2.1 inputs. In addition, the NZ800 has better black levels and superior HDR tone mapping, making it the ideal choice for any discerning film fan
Free calibration in your home by JVC (Auckland only)
In Stock at Supplier
3rd Generation Native 4K D-ILA Device
D-ILA device is the heart of projectors that plays an impor tant role in projecting beautiful images. Device improvement continues to date – the third generation 0.69-inch native 4K D-ILA device improved the alignment control of liquid crystals and enhanced the flatness of image pixels to offer 1.5-times* the native contrast ratio compared to the Gen2 device. Additionally, improvements in the device manufacturing process have resulted in improved screen uniformity and enhanced image quality. *:DLA-NZ800 and DLA-RS3200 are 1.25-times.
Unparalleled Black Level and High Luminance Deliver Images Brimming with Reality
The new D-ILA projector boasts the industry’s highest native contrast with the Gen3 0.69-inch 4K D-ILA device and wire-grid optical engine, however in combination with the dynamic laser light control, which analyzes the incoming video signal to automatically control the amount of outgoing laser light, a dynamic contrast level of ∞:1 (infinity to 1) can be achieved in scenes with pitch blackness by completely shutting off the light source. As a result, images brimming with reality that are closer to human perception can be produced. Likewise, the new algorithm enables laser control with greater precision to meet the user’s preferences.
Exceptional Brightness and Longevity with BLU-Escent Laser
Another essential aspect of projectors lies in their light source. The DLA-NZ series adopts JVC’s original laser light source “BLU-Escent Laser” to achieve exceptional peak brightness of 3,300 lumens on the DLA-NZ900 and 2,700 lumens on the DLA-NZ800, both with longevity of 20,000 hours. When compared to the first-generation laser projector*, the projectors’ brightness per effective wattage has improved 1.9-fold, which, as a result, also contributes to saving power through improved power efficiency.
*When compared to the DLA-Z1
Controlling the Luminance in 101 Steps
BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.
8K60p Input for Ultra-high Res 8K Content. 4K120p Input for Games and More.
This D-ILA models support a variety of inputs including full 48Gbps 8K60p. By adopting LSIs developed with the latest technology, it is now possible to process four times the amount of information from input to D-ILA device instantly and correctly display 8K signals. As a result, users can enjoy stable high-quality 8K images at all times. Also, using 4K120p input with the Low Latency Mode further improves response to the player’s rapid operations, making it effective for displaying high frame-rate gaming content on large screens.
Gen2 8K/e-shiftX Realizes Remarkable 8K Resolution Display
JVC’s proprietary 8K/e-shiftX, which is a combination of “e-shift technology” – a high-resolution display technology that doubles the resolution by shifting a pixel by 0.5 pixels in four directions up, down, left, and right – and “0.69-inch native 4K D-ILA devices” has made significant progress as the second generation 8K/e-shiftX. The latest version features JVC’s newest 8K scaling engine that drastically improves the projector’s sharpness and detail across a wide range of content, including 8K (8192 x 4320 pixels) sources.
All-glass Lens System Made to Clearly Depict Everything. What 8K Image Has to Offer
The DLA-NZ800 is equipped with an 17-element, 15-group all-glass lens featuring a full aluminum lens barrel. To project high resolution 8K images to every corner of the screen.
Device
- D-ILA Technology
- Yes
- Chip Type
- 3rd Generation 0.69-inch 4K D-ILA device
- Native Resolution
- 4096 x 2160
- Number Of Chips
- 3
- 8K/e-shiftX
- Yes
- Display Resolution
- 8192 x 4320
Light Source
- Laser
- Yes
- Type
- BLU-Escent Laser Diode
- Life Time (Standard Mode)
- 20000 hours
- Brightness
- 2700 lm
- Dynamic Contrast
- ∞ : 1
- Native Contrast
- 100000 : 1
- Dynamic Light Power control
- Yes
- Modes
- Mode 1 (gentle), Mode 2 (strong), Off
- Manual Aperture
- Yes
- Range
- -15 (stops down) to 0 (opens up)
- DCI-P3 Color Gamut
- Yes
- 100% REC 709
- Yes
- Color Bit Depth
- 12 bit
- ISFccc Certification
- Yes
HDR
- HDR10
- Yes
- HDR10+
- Yes
- Frame Adapt HDR
- Yes
- Theater Optimizer
- Yes
- HLG
- Yes
- Auto Tone Mapping
- Yes
- Mastering Info Display
- Yes
- Info data
- MaxCLL and MaxFALL mastering data
- HDR Picture Modes
- BT.709 / BT.2020 / DCI / HDR
Lens
- Zoom
- 2 x
- Throw Ratio
- 1.43-2.92:1
- Diameter
- 65 mm
- Material
- All-glass
- Build
- 17-element, 15-group in full aluminium lens barrel.
- Lens Shift
- Yes
- Range Horizontal
- ± 34 %
- Range Vertical
- ± 80 %
- Motorized Zoom
- Yes
- Motorized Shift
- Yes
- Motorized Focus
- Yes
- Projection Display size (diagonal)
- 60 – 200 inch
- Memory Function
- Yes
- Number of user presets
- 10
- Lens Cover
- Yes
HDMI
- HDMI
- Yes
- Number of Inputs
- 2
- Data Rate
- 48 Gbps
- HDCP Version
- 2.3
- 8K60P signal input
- Yes
- 4K120p signal input
- Yes
- 4K60P signal input
- Yes
- Video Signal range
- 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
- PC Signal range
- VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
- Input Level Adjustment
- Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Color Space Range
- Auto/ YCbCr444 / YCbCr422 / RGB
- EDID Modes
- A and B (older hardware may need to use B settings)

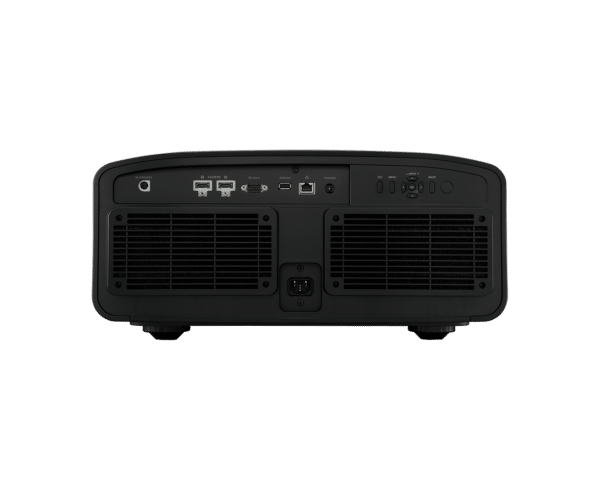

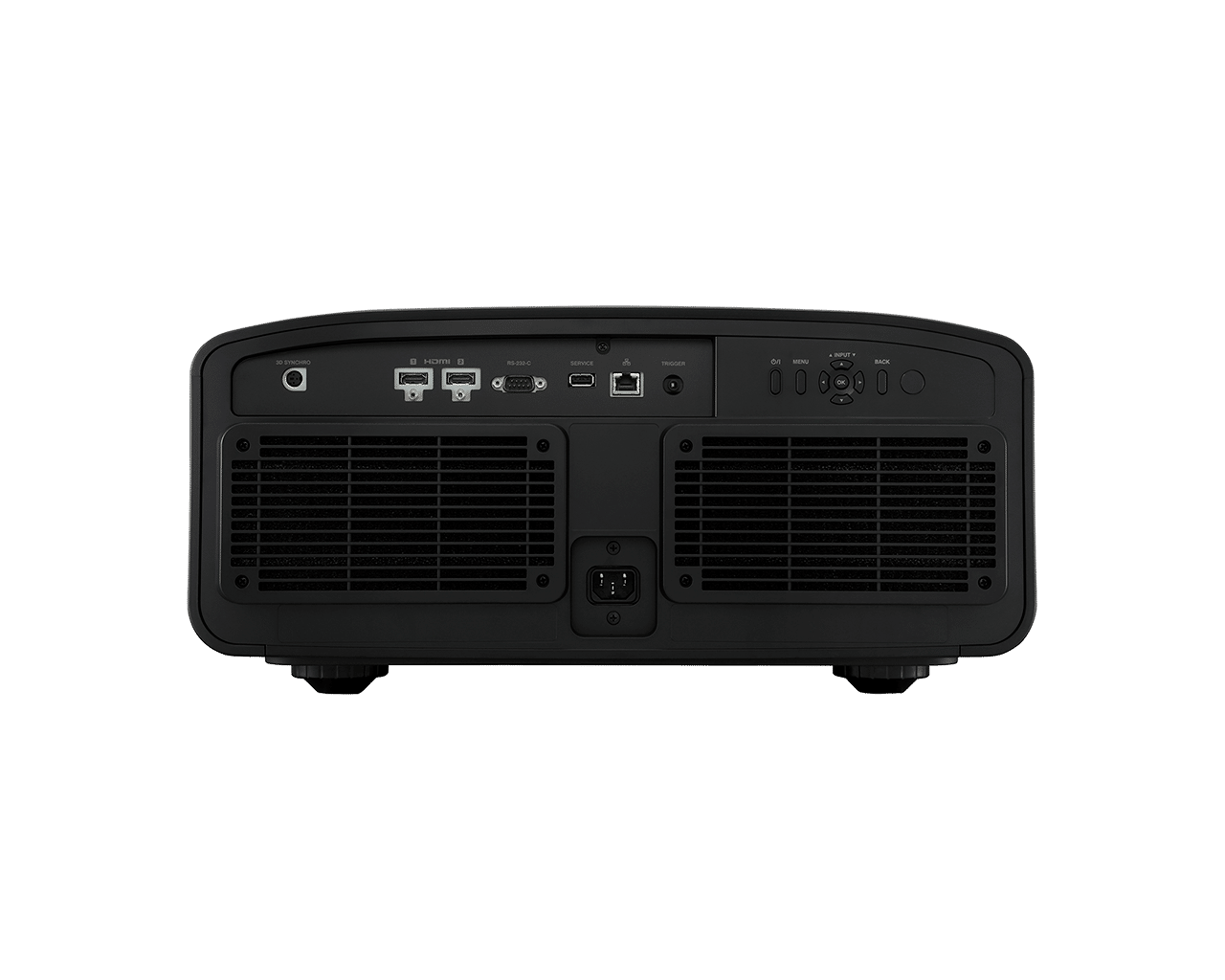

Connections
- Trigger out
- Yes
- Connector
- Mini-Jack (3,5mm)
- Power
- DC 12V / 100mA
- 3D Synchro
- Yes
- Connector
- Mini DIN 3-pin
- LAN
- Yes
- Connector
- RJ45
- RS-232
- Yes
- Connector
- D-sub 9-pin
- Service
- Yes
- Connector
- USB (Type A) for firmware update or backup
3D
- 3D Capability
- Yes
- 3D Versions
- Frame Packing, Side-by-Side, Top & Bottom
- Frame Packing Resolutions
- 720p 60/50, 1080p 24
- Side-by-Side Resolutions
- 720p 60/50, 1080p 60/50/24, 1080i 60/50
- Top & Bottom Resolution
- 720p 60/50, 1080p/24
- 3D Emitter (Optional)
- Yes, PK-EM2
- 3D Glasses (Optional)
- Yes, PK-AG3
Picture Settings
- Picture Modes
- Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
- Color Temperatures
- Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing Depth
- 12 bit
- Gamma Adjust
- HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
- Color Management
- 6-Axis adjustable CMS
- MPC
- Yes
- Filmmaker Mode
- Yes
- Low Latency Mode
- Yes
- Clear Motion Drive
- Yes
- Motion Enhance
- Yes
- Auto Calibration
- Yes
- Optional Probe needed
- Yes
- Installation Mode
- Yes
- Number of modes
- 8
- Included settings
- Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
- Anamorphic Modes
- 4 Modes (A, B, C, D)
- Control4 SDDP
- Yes
Power & Environment
- Power Requirement
- AC100-240V, 50/60Hz
- Projector in Use
- 440W
- Standby
- Eco-mode: 0.3W
- Network Standby
- 1.5W (LAN)
- Fan Noise
- 24 dB
- Eco Mode
- Yes
- Standby Timer
- Yes
- Operating Temperature
- 5°C to 35°C
- Operating Humidity
- 20% to 80%
- Installation Angle
- Horizontal +/- 5 degree / Vertical +/- 10 degree
- Installation Height
- Below 2,000 m
In the box
- Remote Control

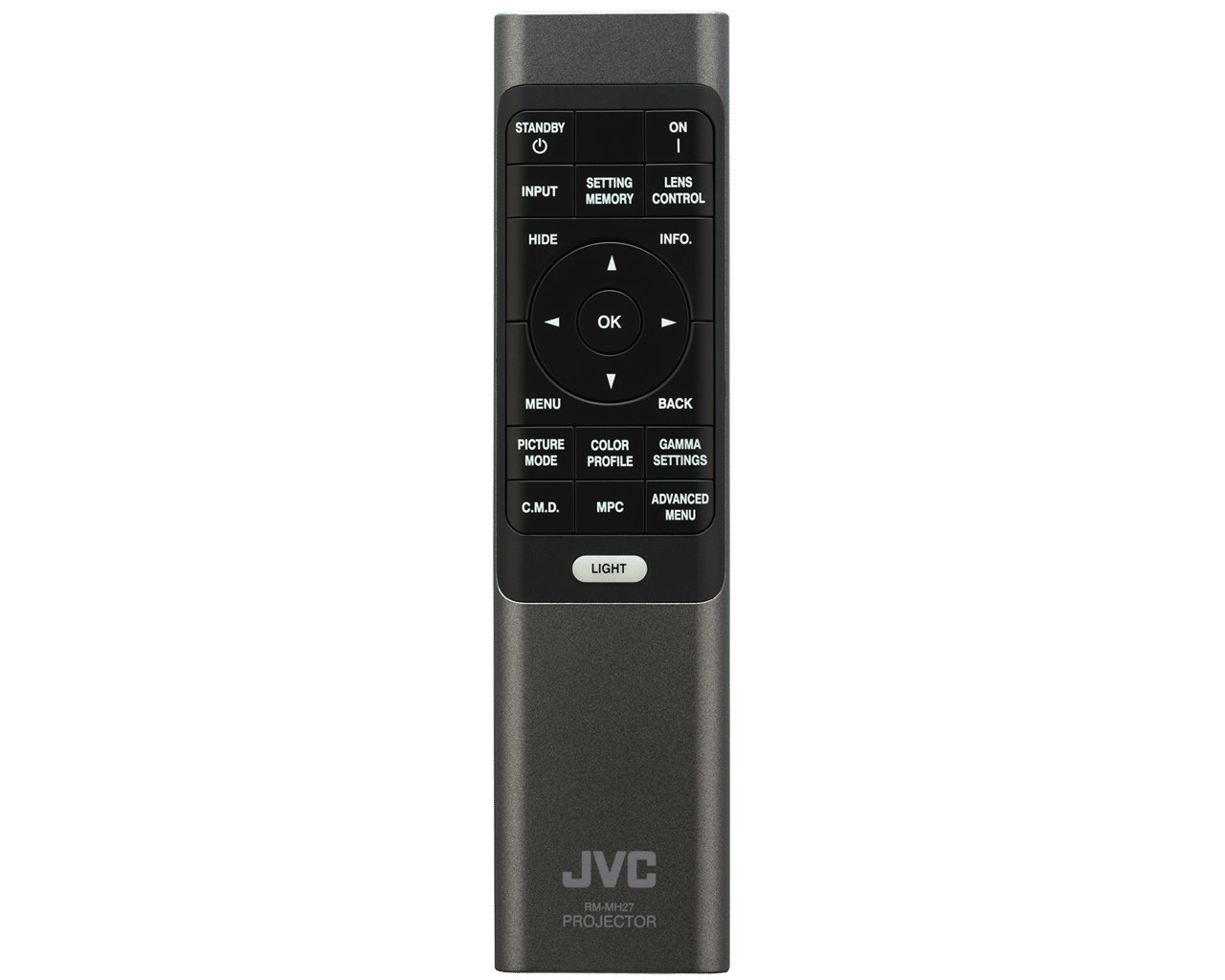

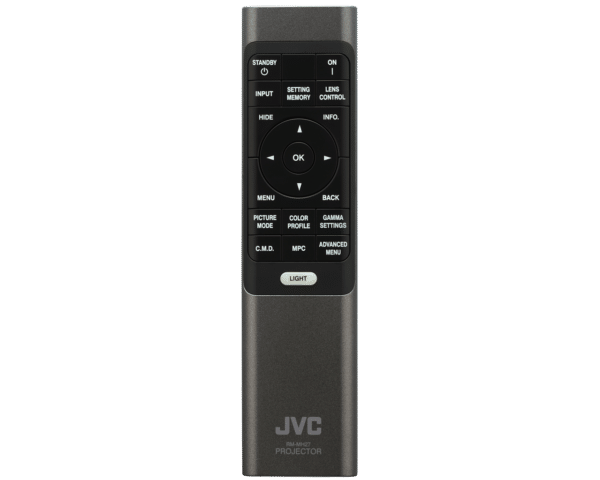

- Yes, RM-MH27
- User Manual
- Yes
- Power Cord
- Yes
- Batteries
- Yes, 2 x AAA-size batteries
Dimensions & Weight
- Product Dimensions (WxHxD)
- 19-11/16 x 9-7/32 x 19-29/32 (inch)
- Product Weight
- 50.8 Lb
General Editing Note
- General Note:
- Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
