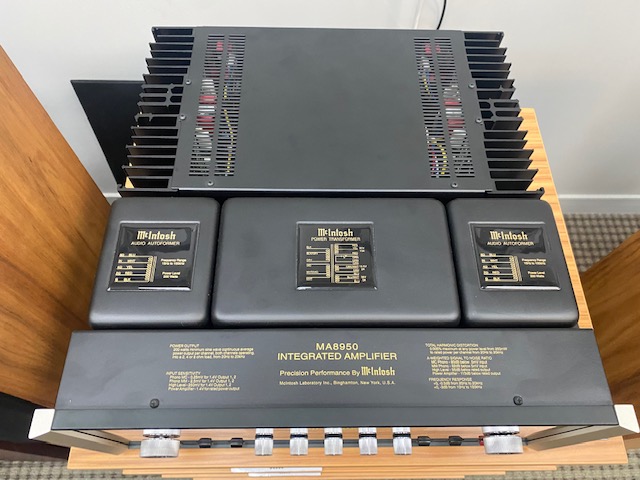

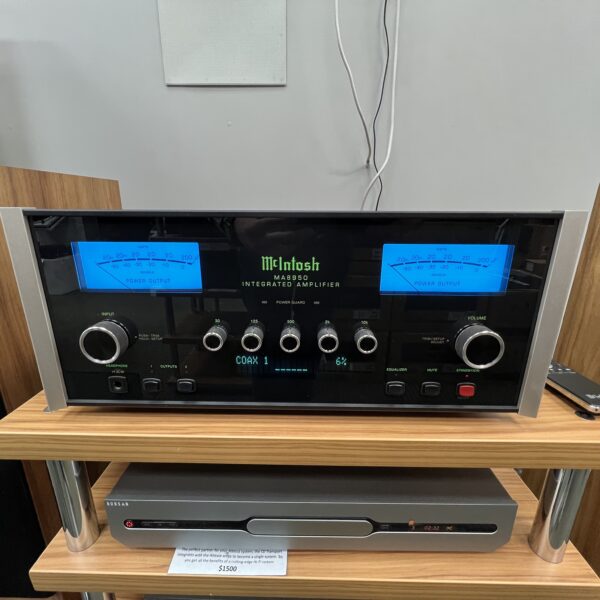

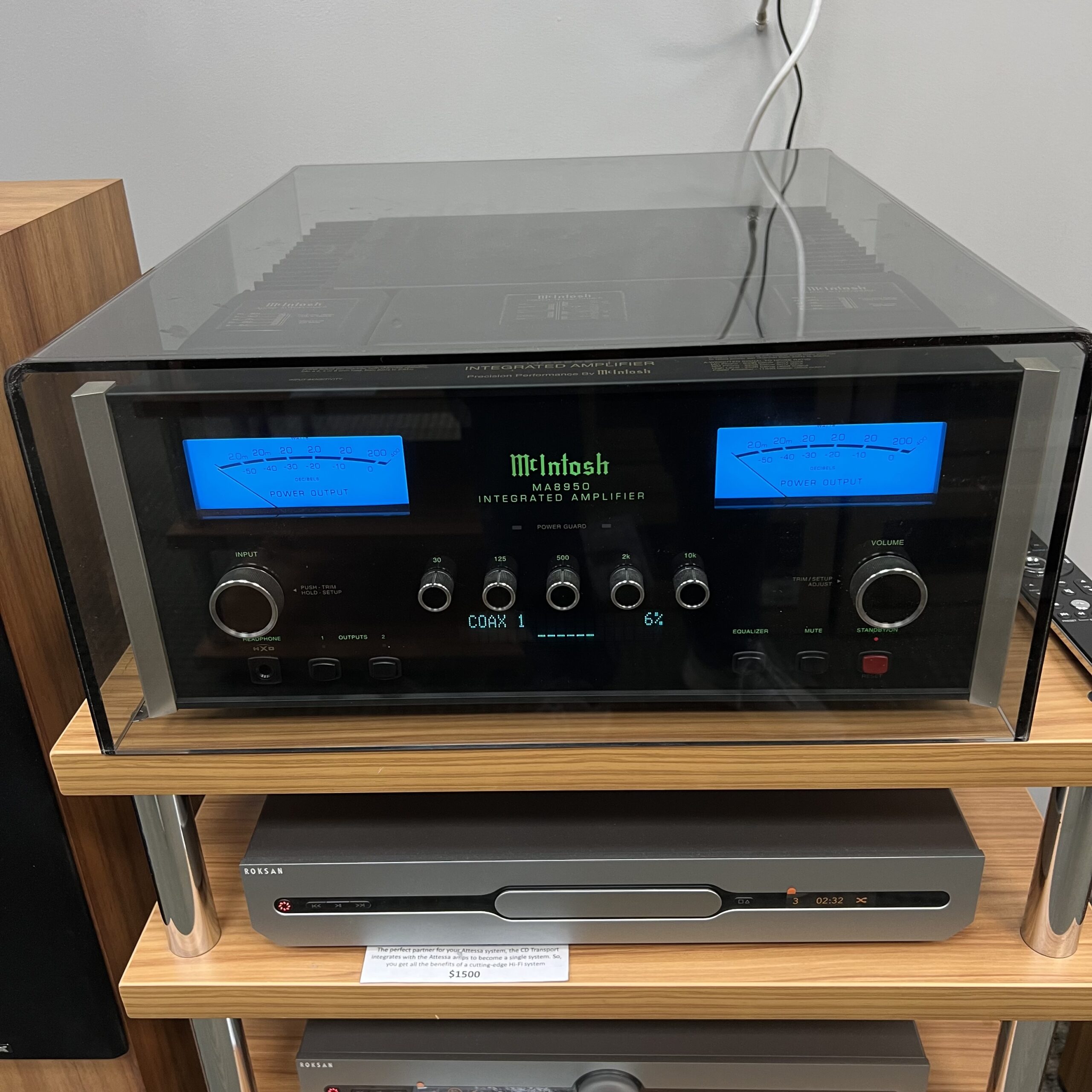

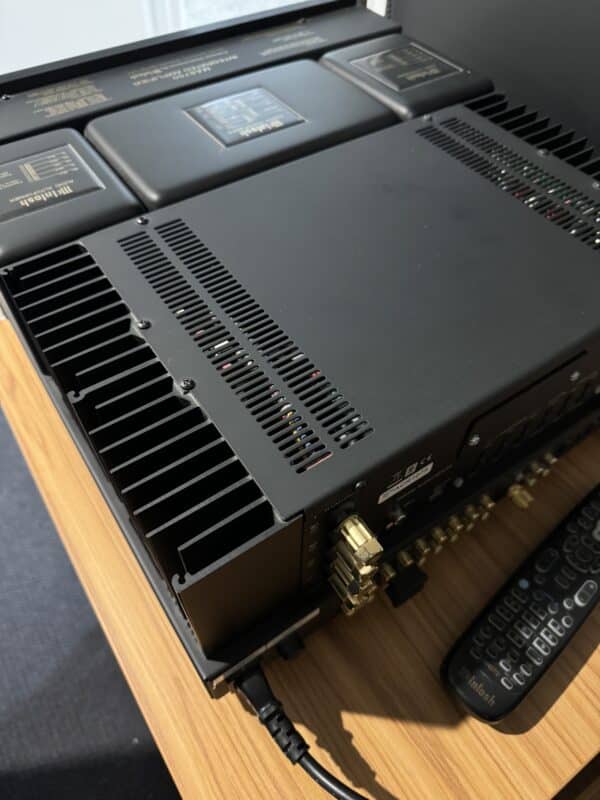

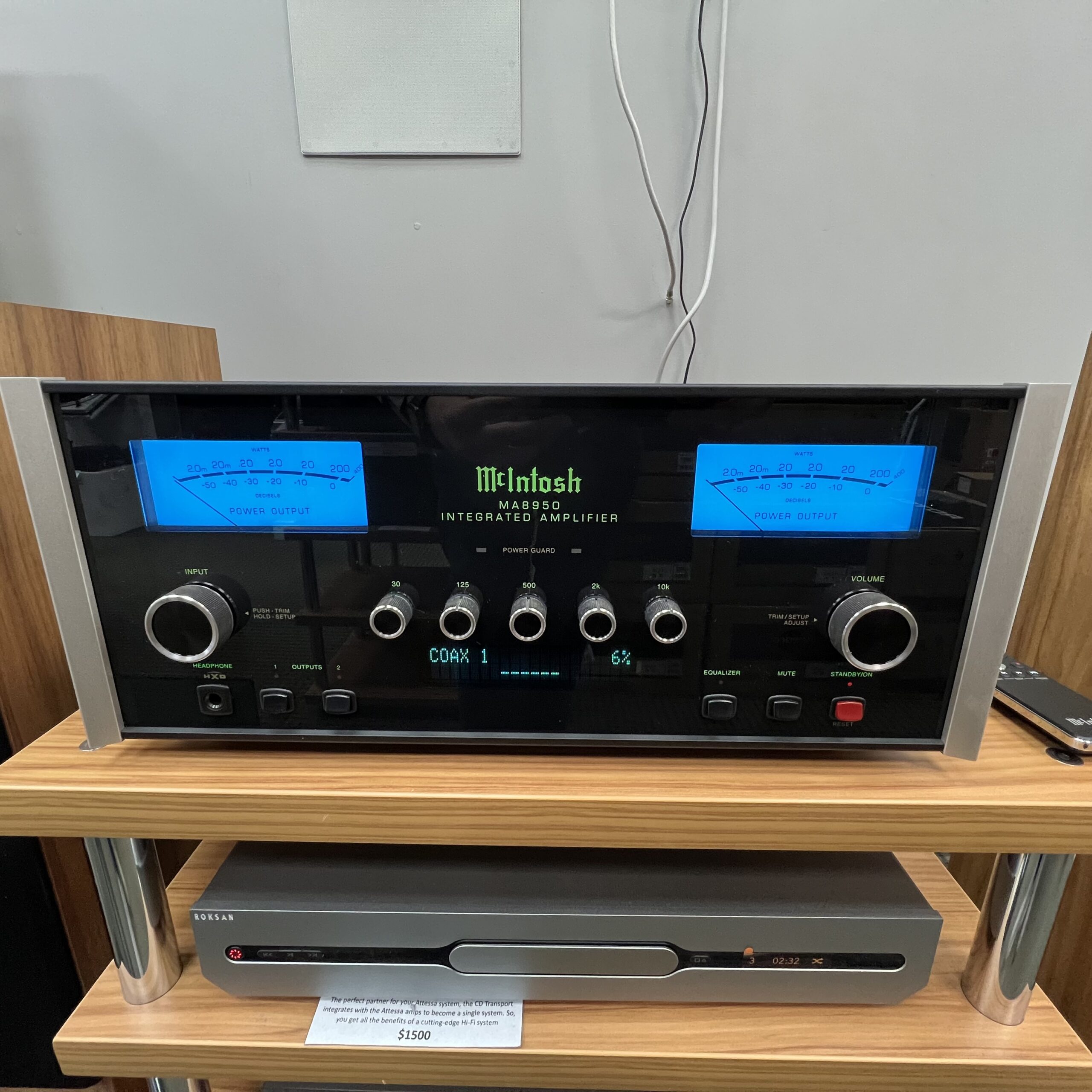

McIntosh MA8950 Integrated Amplifier

$9,500.00

3 Months Warranty

Out of stock

Notify me when the item is back in stock.

  • 200 Watts x 2 channel
  • 5-band tone control
  • Comes with DA2 Digital Audio Module installed
  • 55% increase in Dynamic Headroom for better music peak reproduction

Dynamic headroom has increased from 2.0dB to 3.1dB in the MA8950 as a result of its filter capacity being doubled. This gives the MA8950 even greater ability to reproduce musical peaks with less distortion. The increased filter capacity will also help deliver more amazing bass playback, low end performance, and overall bass control.

The MA8950 comes standard with the DA2 Digital Audio Module instead of the DA1 Digital Audio Module that came in the MA8900. The DA2 offers 7 digital inputs: 2 coaxial, 2 optical, 1 USB, 1 MCT, and 1 audio-only HDMI Audio Return Channel (ARC)1 connection. TVs with a compatible HDMI (ARC) output can be connected to the MA8950 to enjoy your TV’s sound like never before through your home music system. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be expertly converted to 2-channel audio for proper playback. The MA8950 remote can control the TV’s power and volume when CEC communication is enabled in both the amplifier and the TV. The DA2 also features increased DSD playback support of up to DSD512 via the USB input.

Electronic Specifications

  • Power Output per Channel
    200 Watts
  • Number of Channels
    2
  • Speaker Impedance
    2, 4, or 8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Dynamic Headroom
    3.1dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity Phono (Moving Coil)
    0.25mV
  • Sensitivity Phono (Moving Magnet)
    2.5mV
  • Sensitivity High Level (Balanced / Unbalanced)
    0.5V/0.25V
  • Sensitivity (Power Amp input)
    1.4V
  • Signal To Noise Ratio (Moving Coil)
    80dB
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Signal To Noise Ratio (High Level)
    95dB
  • Signal To Noise Ratio (Power Amp input)
    113dB
  • Input Impedance (Balanced / Unbalanced)
    20K/20K
  • Damping Factor
    >40
  • Maximum Output (Balanced / Unbalanced)
    8V Unbalanced

Connectivity

  • Balanced Input
    1
  • Unbalanced Input
    6
  • Phono Input Moving Coil
    1 (adjustable loading)
  • Phono Input Moving Magnet
    1 (fixed loading)
  • Upgradeable Digital Audio Module
    Yes: DA2
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital MCT Input
    1
  • Digital USB Input
    1
  • HDMI (ARC) Input
    1
  • Balanced Variable Output
    0
  • Unbalanced Fixed Output
    1
  • Unbalanced Variable Output
    2
  • Headphone Output
    1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Subwoofer Output
    0
  • AM/FM Tuner option
    No
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Standard
  • Speaker Binding Post Type
    Standard
  • Service Port
    1

Digital Audio Specifications

  • Digital-to-Analog Converter (DAC) Type
    8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
  • Digital Coaxial Input Sample Rate
    24-bit/44.1kHz to192kHz
  • Digital Optical Input Sample Rate
    24-bit/44.1kHz to192kHz
  • Digital MCT Input Sample Rate
    16-bit/44.1kHz (CD)
    DSD64 (SACD)
  • Digital USB Input Sample Rate
    32-bit/44.1kHz to 384kHz (PCM)
    DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz

Control

  • Tone Controls
    5-Band
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 2 Trigger
  • Rear Panel Data Port
    4
  • Rear Panel IR Sensor Input
    Yes
  • Input Level Match
    Yes

General Specifications

  • Vacuum Tube or Solid State
    Solid State
  • Output Type
    Autoformer™
  • Output Meters
    Yes
  • Dual Layer Chassis
    Yes
  • Chassis Finish
    Polished stainless steel & black painted steel
  • McIntosh Monogrammed Heatsinks™
    Yes
  • Power Requirement
    120V 50/60Hz, 4.4 amps
  • Standby Power Requirement
    <0.25 Watts

Weights & Dimensions

  • Unit Dimensions (W x H x D)
    17-1/2″ (44.5cm) x 7-5/8″ (19.4cm) x 18-3/4″ (47.6cm)
  • Unit Weight
    75 lbs (34.1 kg)
  • Shipping Weight
    93 lbs (42.3 kg)
