Mission 778X Integrated Amp

$1,299.00

Over the past 45 years, Mission has become famed for loudspeakers that break the norms of price-point, technology and design. Yet, in its illustrious history, Mission was also responsible for some equally prolific hi-fi electronics.

Thus, the Mission 778X is a revisit of a classic Mission amplifier concept that was the Mission 778 – an affordable integrated amplifier that offered simplicity in operation but over-performed in the driving of loudspeakers.

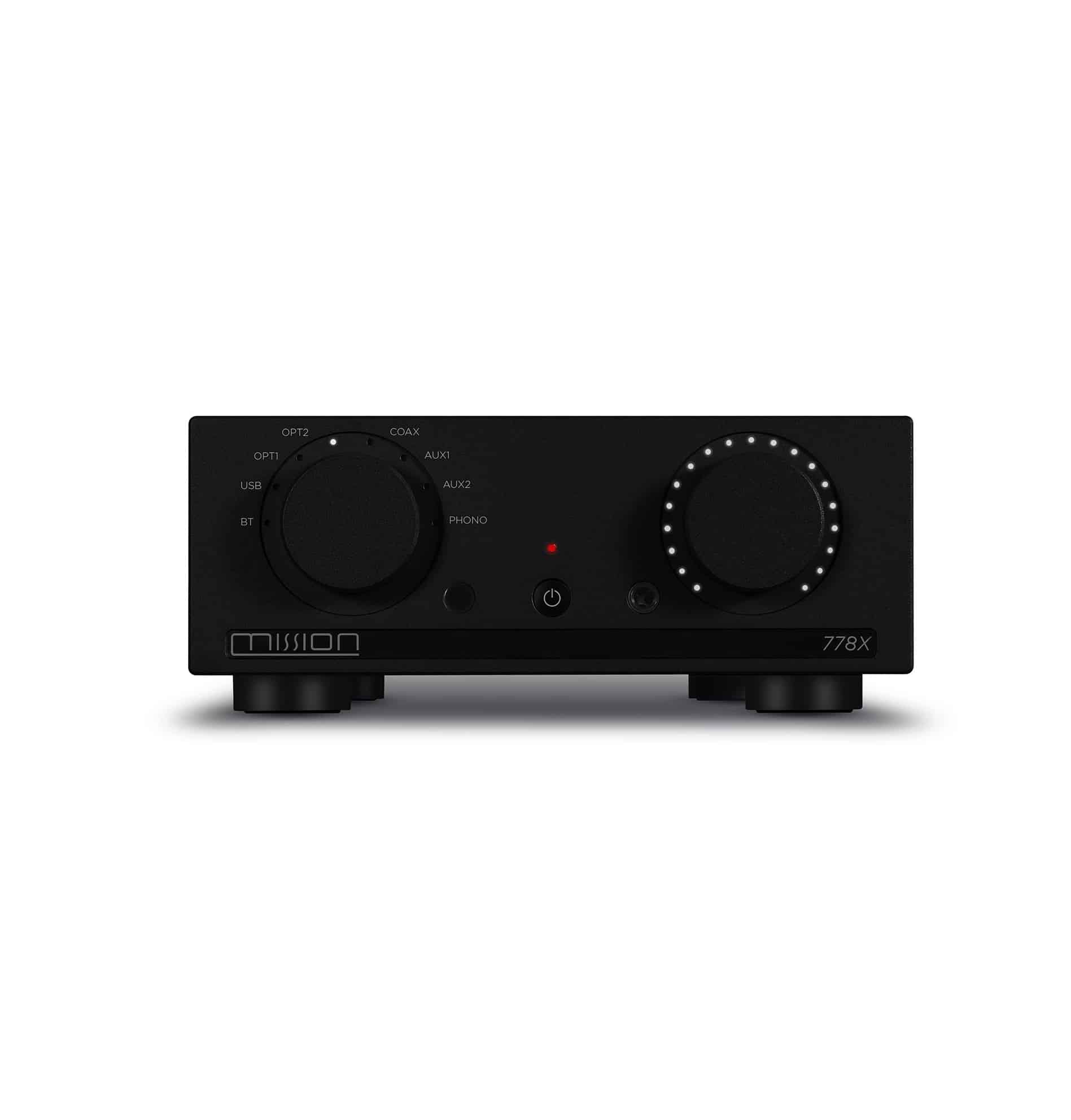

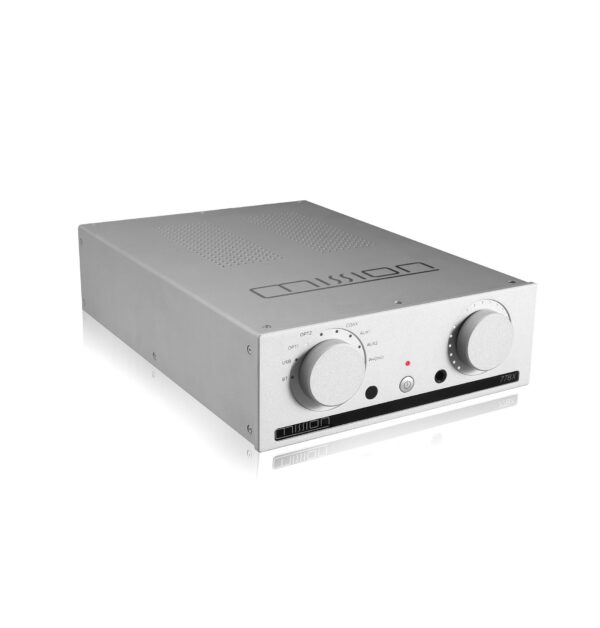

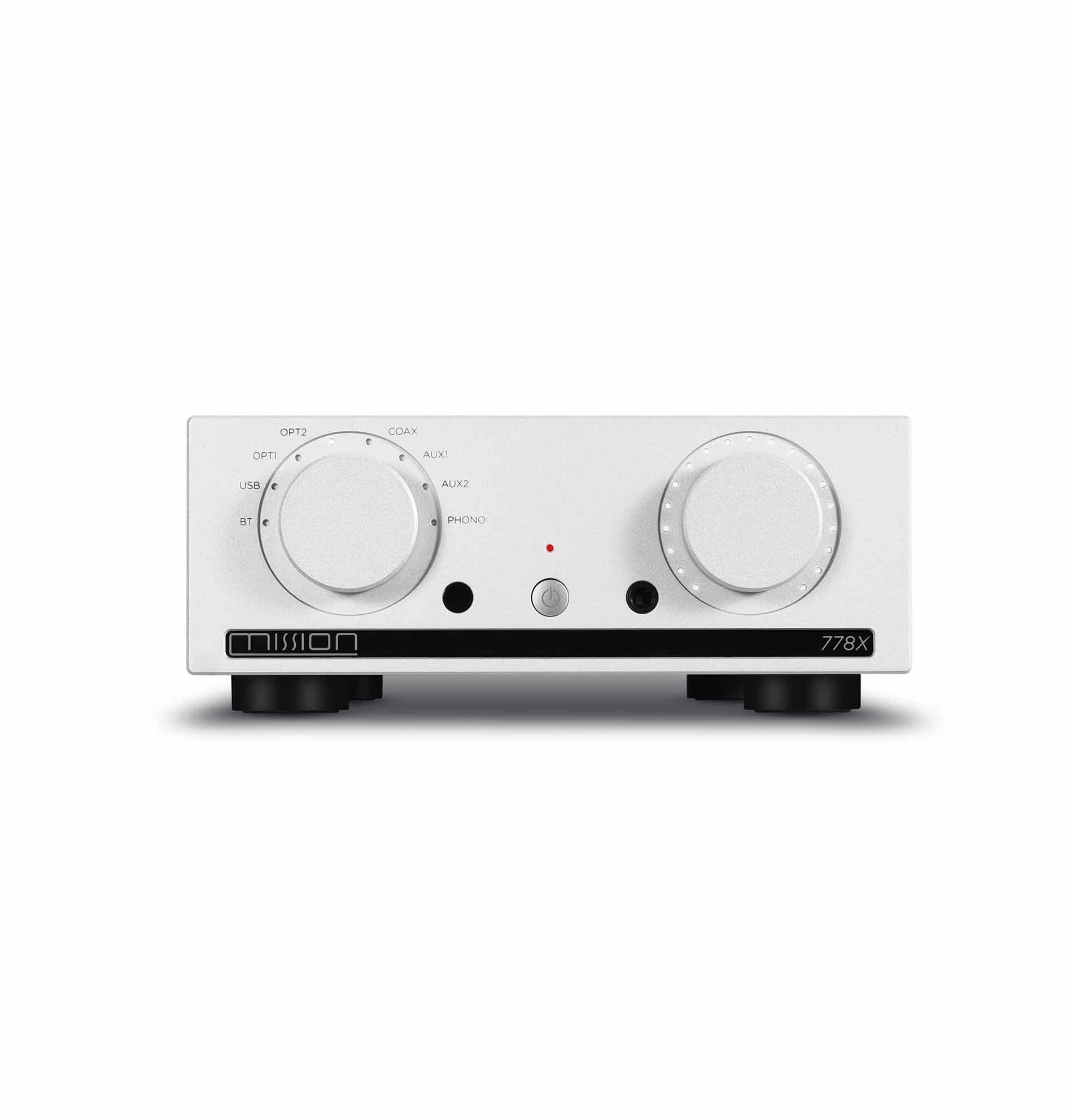

Today’s Mission 778X maintains the influence of simplistic operation, large tractile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 watts (@4 ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.

Hi there! How can we be of assistance?

Phono ready – The phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.

Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!

Dacs the way – That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256!

Headphone stage – Equal in performance to standalone headphone amplifiers, beyond the price- class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.

Model 778X
General Description Digital-to-Analogue Converter, Stereo Amplifier
Design Philosophy and Core Technology • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
• ESS Sabre32 ES9018K2M Reference Chip
• Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
• Dedicated High-performance, Low-noise MM Phono Stage
• Headphone AMP With High-speed Output Signal Transition
• USB Upgrade Support
• Large Tractile Controls With LED Level Indicators

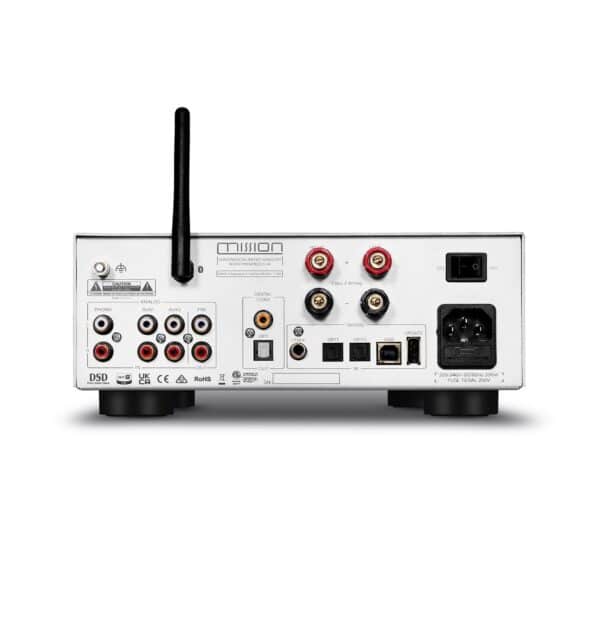

Inputs 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
2 x AUX,1 x RCA (Phono MM)
Outputs 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz;
PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
Preamplifier Section
Gain (max.) +0dB (Line), +47dB (Phono MM)
Input Sensitivity 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
Input Impedance 10K (AUX); 47K//100pF (Phono MM)
Total Harmonic Distortion (THD) <0.003%
Frequency Response (ref. 1kHz) 20Hz-20kHz (±0.1dB)
PRE Output Level 2.1Vrms (max.)
PRE Output SNR >110dB (A-weighted)
DAC
D to A Converter ESS Sabre32 ES9018K2M
Resolution 32-bit
Max. Sampling Frequency Optical/Coaxial: 192kHz;
USB: PCM 384kHz / 11.2896MHz (DSD256)
Total Harmonic Distortion (THD) < 0.001% (1KHz @ 0dBFS)
Output level (0dBFS, 1KHz) 2.1Vrms
Power Amplifier Section
Gain +31dB
Rated Power Output 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
Frequency Response (ref. 1kHz) 20Hz-20KHz (± 0.5dB)
Total Harmonic Distortion (THD) <0.005% (30W / 8 ohms)
Input Sensitivity 540mV (RCA AUX In); 2.5mV (Phono MM)
Signal-to-Noise Ratio (SNR) >108dB (ref. 45W, A-weighted)
Crosstalk @1K >80dB (ref.1W)
Standby Power Consumption <0.5W
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW )
Output Impedance 4.7 ohms
Load impedance 20-600 ohms
General
Dimensions (mm) (W x H x D) 236x98x380.6
Carton Size (mm) ( W X H X D) 450x392x175
Net Weight 6.3kg
Finish Black / Silver
Power requirements (depending on region) 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
Standard Accessories Power Cord, Remote Control, User Manual, Antenna
