Mission LX-10SUB MKII

$1,199.00

The LX MKII Series is the latest in a long line of distinguished Mission loudspeakers, joining the multi-award winning speakers from the mid-level QX Series and the flagship ZX Series. LX MKII maintains the Mission trademark ‘Inverted Driver Geometry’ design, which means the path length between the drivers is optimised. Unique at this price-point, this arrangement allows the precision-tuned crossover to yield improved transient attack and astonishing detail.

Perfected over hundreds of hours of critical listening by Mission’s lead acoustic designer, Peter Comeau, Mission LX MKII utilises trickle-down innovations from the revered ZX series. Improvements in the famous Mission DiaDrive bass unit offer superior control of the low-frequency diaphragm while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price-class.

Continuous Innovation

From over 40 years of British Hi-Fi heritage and experience, LX MKII is a representation of Mission’s non-stop pursuit of improvement and excellence

Active Dynamic Drive

The rear ported cabinet design provides fast and intensive bass response, while the employment of a custom designed, balanced drive, Class-D power amplifier further provides power and speed that is usually unheard of in subwoofers of this price-class.

In addition, a variable crossover frequency control provides seamless integration into any system, offering incredible low-frequency punch, power and substance for all of your music and movies applications.

High Power Amplifier The built-in amplifier is optimised for high impact at low frequencies. The fast response and high-power performance is perfect for movies or music.

No-Presses Paper Cones A specially engineered 10-inch (250mm) paper cone with increased self-damping properties offers an increased structural rigidity of the cone itself, for a fuller performance and massive bass impact.

High Power Amplifier

Copper Lined Vents The lined vents reduce magnetic distortion and also offer improved heat dissipation, letting the LX-10SUB MKII rumble for hours, but always remain cool.

Low Pass Filter Slope A continuously adjustable slop, from 35Hz to 150Hz (@33dB), enables seamless acoustic integration with your speaker’s performance.

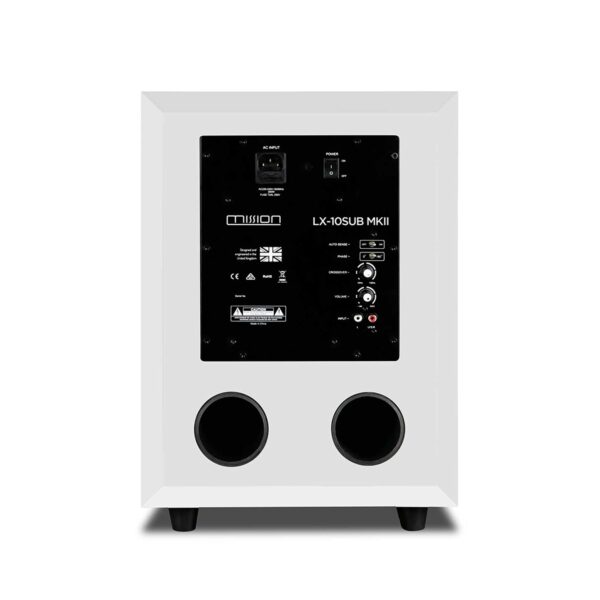

High Sensitivity & Versatility Low level inputs, output connections and a dedicated LFE input are provided. Additionally, the auto power sensor is sensitive enough to detect incoming signals of extremely low level for automatic activation of the subwoofer, when required.

A New Start, With a New Finish

Standout new finish options follow the Mission mantra of fusing Hi-Fi heritage with contemporary design. LX MKII is beautifully finished in a choice of walnut pearl, and the latest Lux Black and Lux White matte finishes.

LX MKII is the epitome of affordable high-end audio, harnessing materials, techniques and technologies that you would only expect to find in other speakers costing many times the price

Whatever your choice of music, LX MKII will reproduce it with outstanding accuracy, detailing and realism, embodying Mission’s traditional adage since the 1970s

Description/Format Active dynamic drive subwoofer system
Drive Units 1 x (10″) 250mm cone long-throw
Frequency Response 40- 200Hz ±3dB
Amplifier Power Output 200W
Peak Power Output 350W
Line Input Sensitivity 200mv for maximum output
Crossover Range 30 – 150Hz
Inputs Stereo line In (2 x RCA phono)
Mono (LFE) Line In (RCA phono)
Input Impedance Line input 10kΩ
LFE 5kff
Signal-to-noise ratio (S/N) ≥85dB
Avg. Max Output @1m 110dB
Features Phase inversion, auto on-off
Dimensions Height: (412+35)mm, with feet
Width: 312mm
Depth: (392+15)mm
Net weight 16kg
