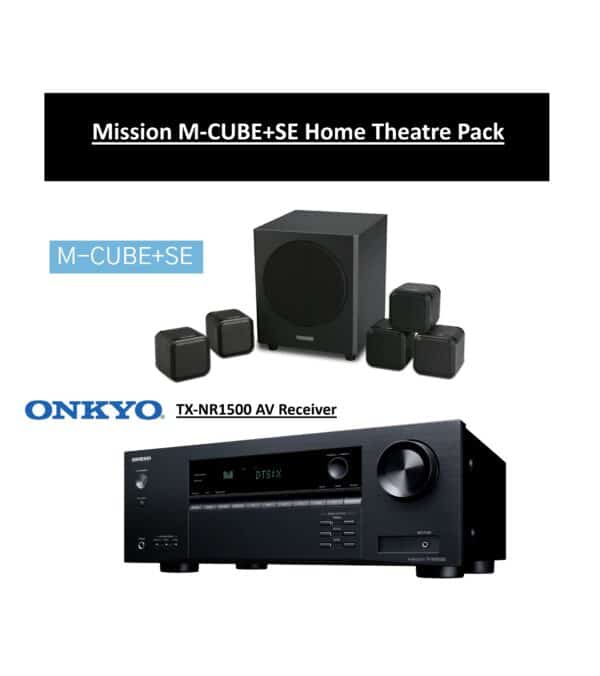

M-CUBE+SE 5.1 surround sound system from the innovative M-CUBE range. (BLACK OR WHITE)
The M-CUBE+SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home. Installation is simple thanks to the small, elegant appearance of the M-CUBE+SE satellite speakers multiple mounting arrangements and the wide dispersion characteristics.
Onkyo TX-NR5100 7.2 Channel 8K AV Receiver
The Onkyo TX-NR5100 7.2-Channel 8K AV Receiver is an affordable and versatile home theater centerpiece tailored to deliver a best-in-class entertainment experience for your movies, music, and next-gen gaming systems.
M-CUBE+SE satellite speakers
The full-range driver in each M-CUBE+SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area.
M-CUBE+SE subwoofer
The M-CUBE+SE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 – 150Hz power spectrum with exceptional dynamics and control. This is the result of using a 200mm long-throw, high linearity sub-bass unit driven by a new 150 Watt Class D amplifier equipped with precisely aligned equalization for a clear and powerful bass rendition that matches the satellites.
With easy-install on-wall or shelf mounting, the new Mission M-CUBE+SE is the solution for anyone looking for hi-fi quality sound from AV and music sources who require a versatile and discrete loudspeaker system.
ONKYO 7.2-Channel 8K Smart AV Receiver.
Dolby Atmos Height Virtualizer and DTS Virtual:X. HDMI 4 In, 2 Out (Main Out [eARC], Sub Out). Theatre Dimensional Virtual Surround Function. Black
7.2-Channel 8K AV Receiver
The Onkyo TX-NR5100 7.2-Channel 8K AV Receiver is an affordable and versatile home theatre centrepiece tailored to deliver a best-in-class entertainment experience for your movies, music, and next-gen gaming systems.
Our SMART AV Receiver™ combines the latest in HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for an unparalleled home theatre experience.
M-CUBE+SE
Sensitivity (2.83V@1M) 85 dB
Recommended amplifier power 40-80 W
Nominal impedance 8 Ohms
Frequency response (+/-3dB) 120Hz-20KHz
Bass extension(-6dB) 110 Hz
Dimension (H*W*D)MM 100*100*103 MM
Net weight (Kg) 12kg (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
Onkyo TX-NR5100 AV Receiver
| Power output (All channels) |
165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power |
160W (3 ohms, Front) 125W (4 ohms, Front) 85W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) |
0.08% (20 Hz–20 kHz) |
| Input sensitivity and impedance |
200mVrms/32k-ohms (Line) |
| Rated RCA output level and impedance |
1Vrms 200m Vrms/2.2k-ohms（Zone B PreLine-out） |
| Frequency response |
10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Tone control |
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio |
106 dB (Line, IHF-A) |
| Speaker impedance |
4–16 ohms |
| FM |
87.5 MHz–107.9 MHz |
| AM |
530 kHz–1,710 kHz |
| FM/AM preset memory |
40 stations |
| Power supply |
AC 120 V~, 60 Hz |
| Power consumption (operating) |
490 W |
| Power consumption (idle) |
45 W |
| Power consumption (standby) |
0.1 W |
| Dimensions (W x H x D) |
17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm) |
| Weight |
18.5 lbs. (8.4 kg) |
| Dimensions (W x H x D) |
20 11/16˝ x 9 7/16˝ x 15 15/16˝ (525 x 240 x 405 mm) |
| Weight |
23.1 lbs (10.5kg) |
| Indoor FM antenna |
✓ |
| AM loop antenna |
✓ |
| Speaker setup microphone |
✓ |
| Quick Start Guide |
✓ |
| Remote control |
✓ |
| Two AAA (R03) batteries |
✓ |
