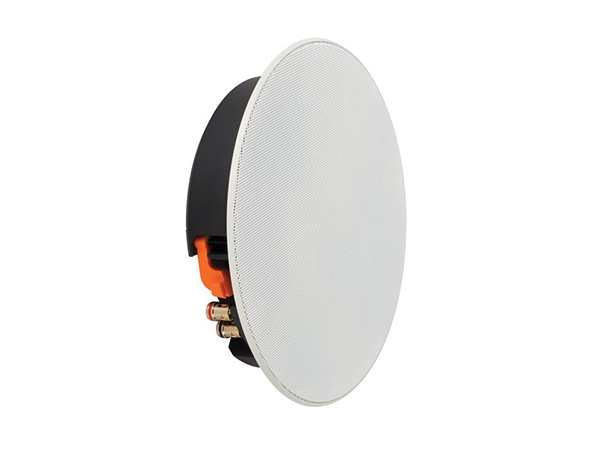

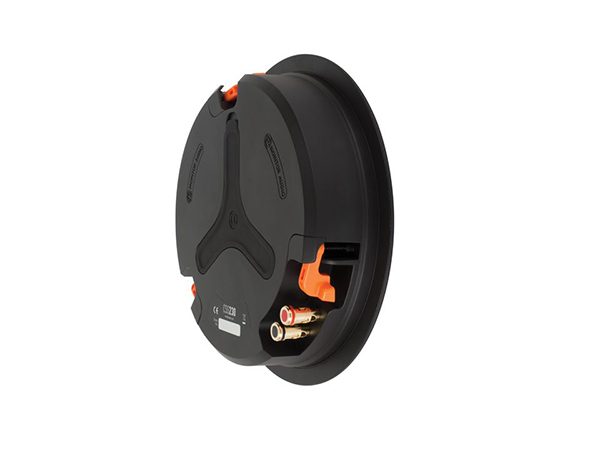

Between 2″ stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.
The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3″ mid-bass units achieve the bass output of a 6 1/2″ driver, all from a super-stealthy flush-fitted profile.
In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors – selected for signal integrity – ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.
Frequency Response (-6 dB) 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)
Nominal Impedance 8 ohms
Sensitivity (1W@1M) 86 dB
Maximum SPL 103.8 dBA
Power Handling (RMS) 40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements 10 – 60 W
Drive Unit Complement 3 x 3″ C-CAM cone bass-mid drivers 1 x 19 mm (3/4″) C-CAM Gold Dome tweeter
Crossover Recommendation 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Connection Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2)
Overall Diameter (Including Grille) 250 mm (913/16″)
Overall Depth (Including Grille) 54 mm (21/8″)
Cut-Out Hole Diameter 211 mm (81/4″)
Mounting Depth 50 mm (2″)
Optional Square Grille – Outer Dimensions 249 x 249 mm (9 3/16″)
Fixing Type 3 position Tri-Grip dog leg fixings
Construction Material ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
Weight 2.88 kg (6 lb 5 oz)
Pre-Construction Bracket CB6 Pre-Construction Bracket (Purple)
