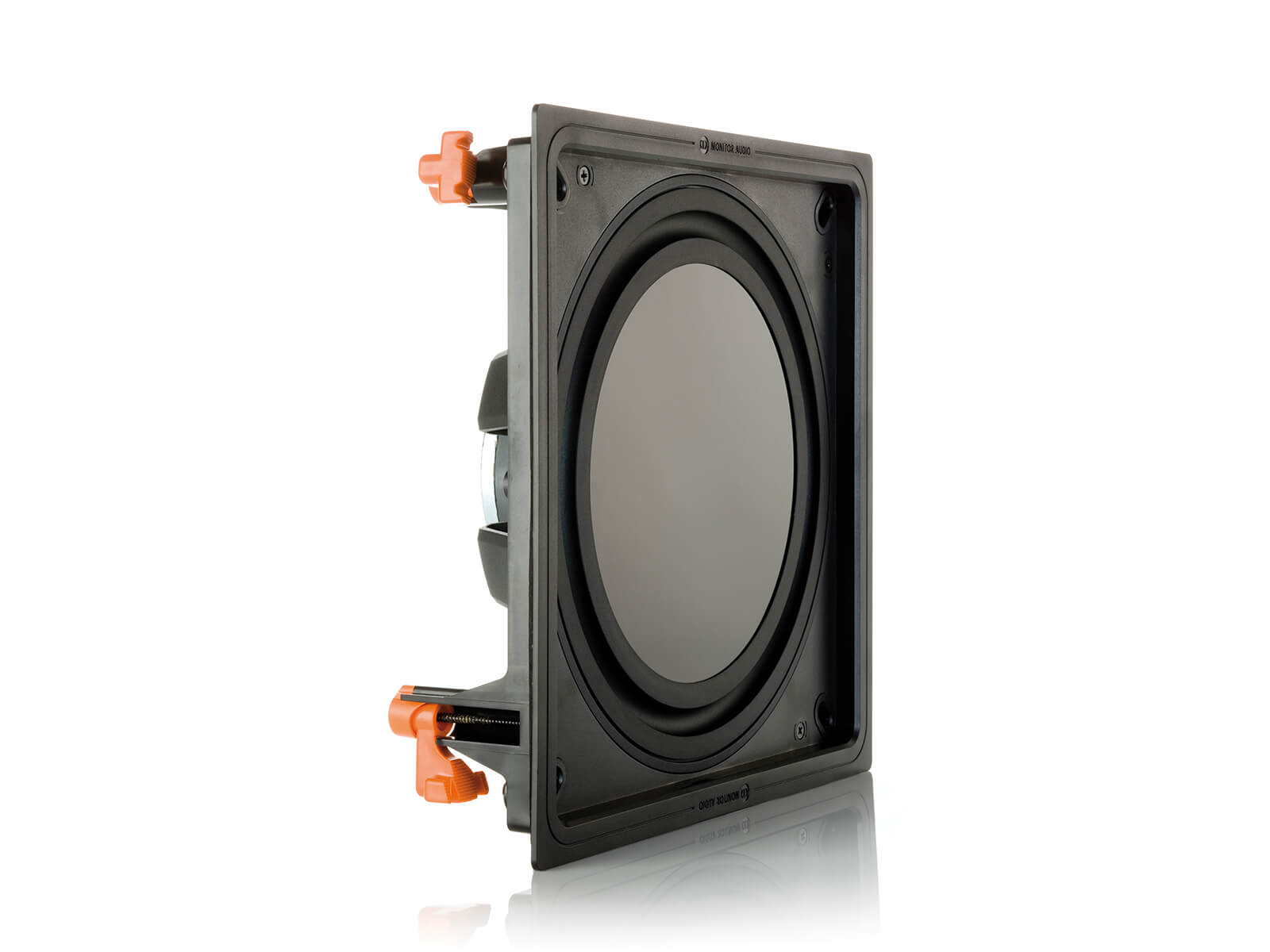

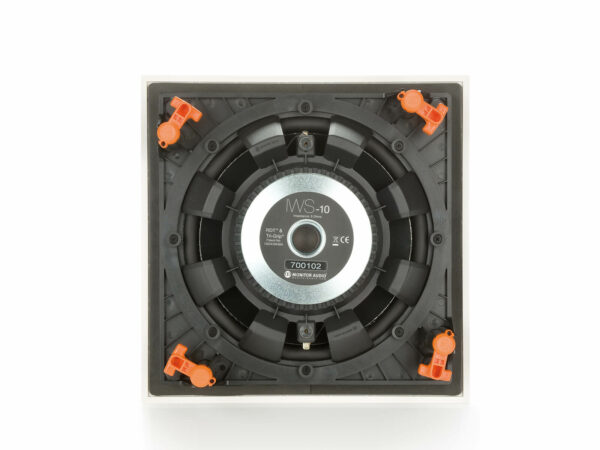

Monitor Audio IWS-10

$900.00

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box.

In stock

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8″) RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.

It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.

Frequency Response

28 Hz — 120 Hz (when mounted in optimum enclosure)

Nominal Impedance

8 ohms

Sensitivity (1W@1M)

86 dB

Maximum SPL

Single unit 109.8 dB; Pair 115.8 dB

Power Handling (RMS)

150 W

Cut-Out Dimensions

280 x 280 mm (11 x 11″)

Mounting Depth

89.98 mm (31/2“)

Fixing Type

4 position Tri-Grip dog leg fixings

Connection

Gold plated “push” type terminals

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Overall Dimensions (H x W x D)

302 x 302 x 92.28 mm (117/8 x 117/8 x 35/8“)

Overall Dimensions (Including Grille (H x W x D))

314.21 x 314.21 x 100.78 mm (123/8 x 123/8 x 315/16“)

Weight

3.8 kg (8 lb 6 oz)

Sold As

Single Unit
