Frequency Response
60 Hz – 30 kHz
Nominal Impedance
8 ohms
Sensitivity (1W@1M)
88 dB
Maximum SPL
108 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
30 – 100 W

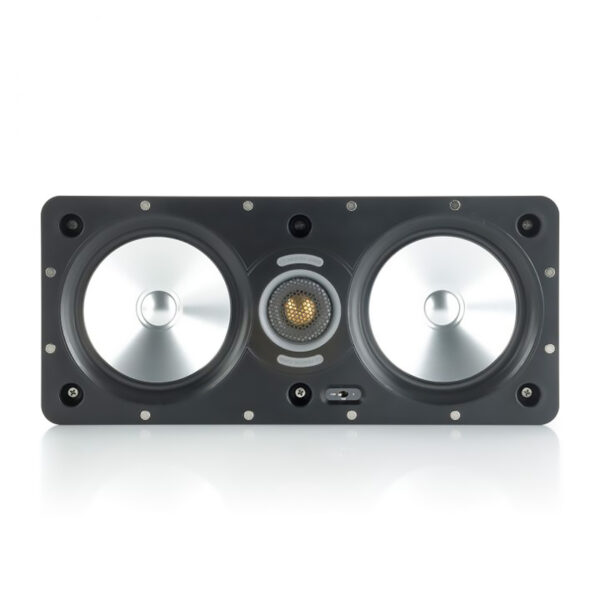

Drive Unit Complement
2 x 5″ MMP II cone bass driver
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter
Adjustment Controls
N/A

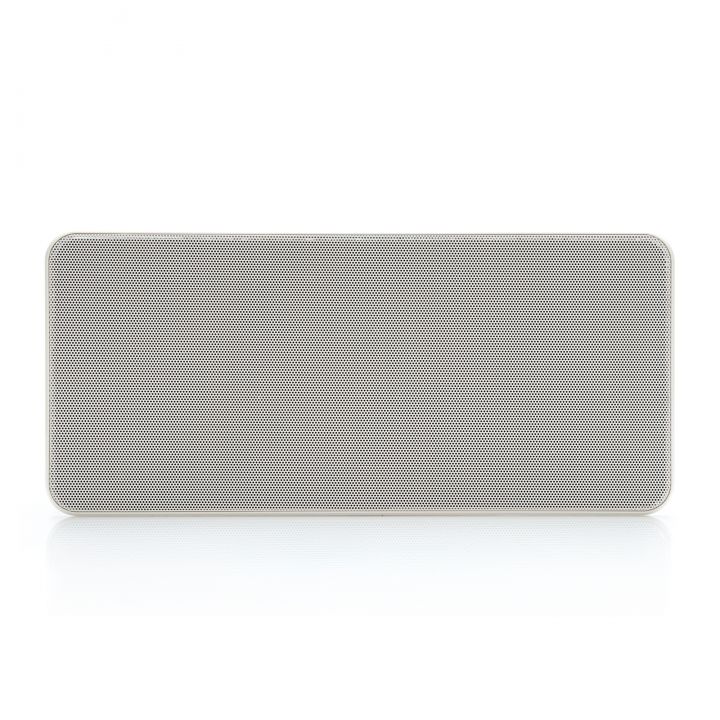

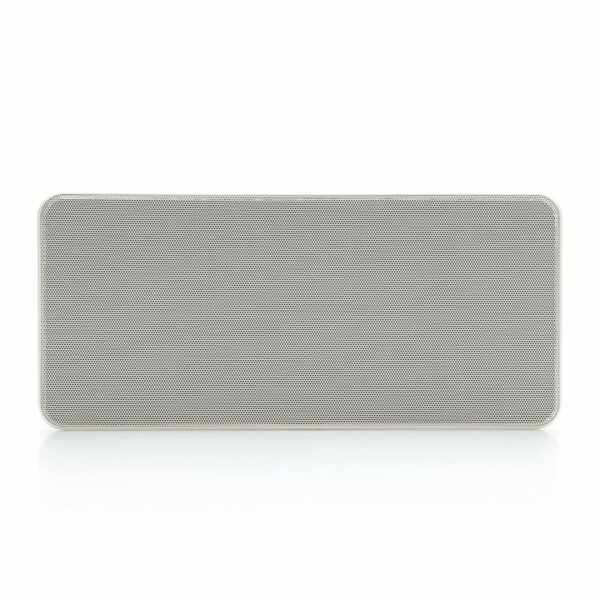

Overall Dimensions (Including Grille (H x W x D))
177.4 x 385.2 mm (7 x 153/16“)
Overall Depth (Including Grille)
105 mm (41/8“)
Mounting Depth
100.2 mm (315/16“)
Cut-Out Dimensions
145 x 353 mm (53/4” x 137/8“)
Required Clearance for Doglegs in Centre Configuration 400 x 197mm (153/4” x 73/4“)
Fixing Type
Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.76 kg (8.3 lb)
Pre-Construction Bracket
Sold As
Single Unit
