Whether you have a dedicated audio network at home, or choose to store your music on a storage platform on your computer network, the Tiki is right at home playing your stored digital music and giving you hours of enjoyment with it.’

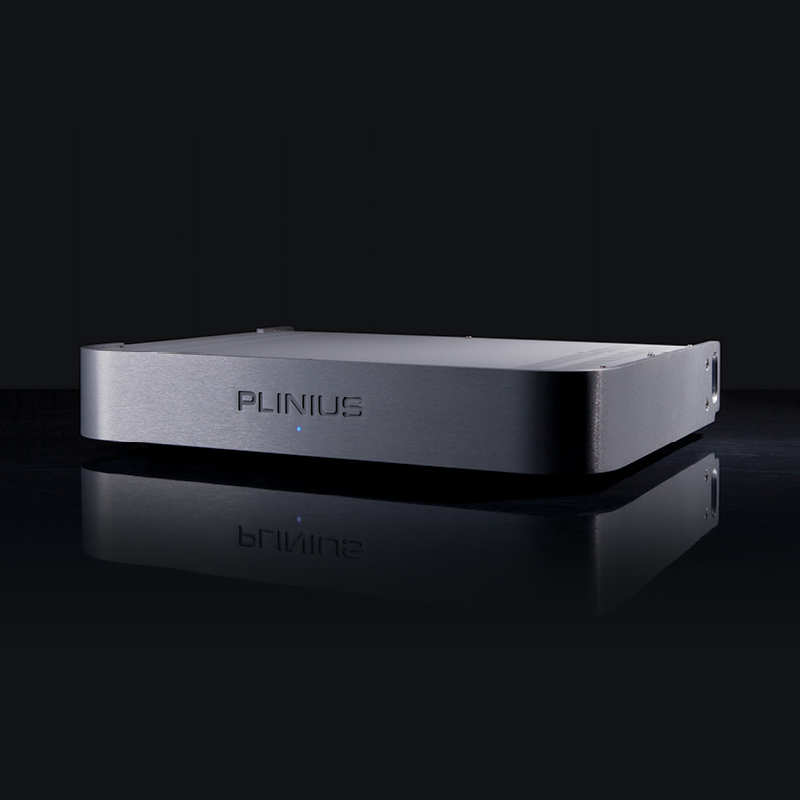

The Tiki is a dedicated network audio player. DLNA compatibility ensures that you can connect the Tiki into your existing Ethernet network and be confident that it will communicate with your other DLNA compatible components.
The RJ45 connector allows network connection for playback of digital music over a home network. Network input was chosen as the most suitable way to transfer digital audio due to ease of setup, ability for wireless communication and advantages over S/PDIF and USB.
Playback is supported for FLAC, LPCM, AIFF ALAC and MP3 including Gapless.
The DAC and interface receiver are high performance Burr Brown components with a proven record of quality digital sound reproduction.
The chosen DAC allows playback of popular file types up to 24bit/192ks/s.
High quality WBT RCA and Neutrik XLR output connectors ensure a high performance, low distortion interface between your cables and the player.
Mechanical damping is applied to the chassis to arrest vibration that can lead to microphonic interference and impact on the audio signals.
Audience AV supply the Auricap XO capacitors used in key areas of the circuit. The Auricap was chosen for its superior clarity and dynamic ability.
The aluminium lid and panels provide a non-magnetic cover to reduce unwanted magnetic fields that can interfere with the sensitive audio signals.
SUPPORTED AUDIO FILE SERVER DLNA Digital Media Servers
SUPPORTED PLAYBACK CONTROL DLNA Digital Media Controllers, DLNA Mobile Digital Media Controllers, UPnP smartphone applications, iPad/iPod applications
DAC CAPABILITY 24 bit, 192ks/s
AUDIO CODEC SUPPORT FLAC (up to 24/192), LPCM (up to 24/192), AIFF, MP3
CONNECTIVITY 10/100 Ethernet
ANALOGUE OUTPUT 1 x RCA stereo pair, 1 x XLR stereo pair
Frequency Response 20Hz to 20kHz +/- 0.2dB,DISTORTION <0.01% THD at Rated Input Level
HUM & NOISE -100dB at Rated Input Level, A Weighted
INPUT 1 x RJ45 connector
MAXIUM OUTPUT LEVEL 2V RMS Into 10k or higher
OUTPUT SOURCE IMPEDENCE Typically 100R
POWER/CURRENT CONSUMPTION 30W 0.09A (22W) Idle
Height 80mm (3.5″),Width 450mm (17.75″)
Depth 400mm (15.75″)
Weight 5.5kg (12lbs)
