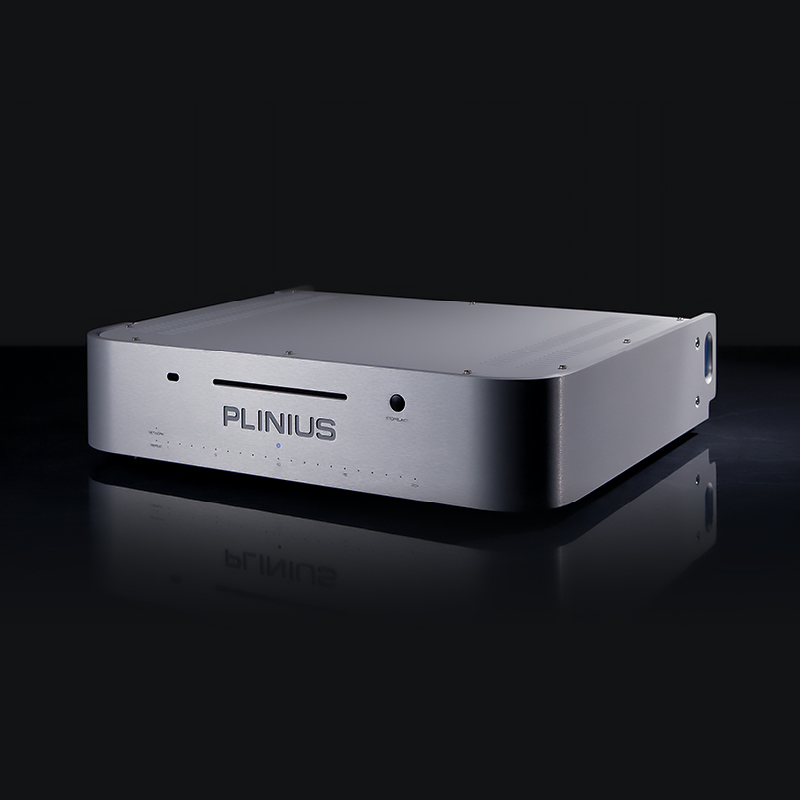

Plinius Toko Digital Player

The Toko digital audio player is equally at home with a conventional CD in its slot loaded transport or when connected to an Ethernet network, you can connect the Toko to your other DLNA compatible components, for example a P.C.

Network Input

The RJ45 connector allows network connection for playback of digital music over a home network. Network input was chosen as the most suitable way to transfer digital audio due to ease of setup, ability for wireless communication and advantages over S/PDIF and USB.

File Formats

Playback is supported for FLAC, LPCM, AIFF ALAC and MP3 including Gapless.

Compact Disc Slot

Primarily designed as a network player, a compact disc transport is also on board to allow playback of standard CD’s

WBT AND NEUTRIK CONNECTORS

High quality WBT RCA and Neutrik XLR output connectors ensure a high performance, low distortion interface between your cables and the player.

ALUMINIUM CONSTRUCTION

The aluminium chassis, lid and panels provide a non-magnetic housing to eliminate unwanted magnetic fields that can interfere with the sensitive audio signals.

BURR BROWN DAC

The DAC and interface receiver are high performance Burr Brown components with a proven record of quality digital sound reproduction.

The chosen DAC allows playback of popular file types up to 24bit/192ks/s.

RC5 INPUT

The RC5 input allows for connection to wired remote interfaces so it can be used as part of an automated system, or if it is required to be located out of the line of sight from a standard remote.

SUPPORTED AUDIO FILE SERVER DLNA Digital Media Servers

SUPPORTED PLAYBACK CONTROL DLNA Digital Media Controllers, DLNA Mobile Digital Media Controllers, UPnP smartphone applications, iPad/iPod applications

DAC CAPABILITY 24 bit, 192ks/s

AUDIO CODEC SUPPORT FLAC (up to 24/192), LPCM (up to 24/192), AIFF, MP4

CONNECTIVITY 10/100 Ethernet

ANALOGUE OUTPUT 1 x RCA stereo pair 1 x XLR stereo pair

Frequency Response 20Hz to 20kHz ±0.2dB

SIGNAL to Noise Ratio -100dB at rated input level, A Weighted

DISTORTION <0.01% THD at rated input level

INPUT 1 x RJ45 connector

MAXIUM OUTPUT LEVEL 2V RMS into 10k or higher

OUTPUT SOURCE IMPEDENCE Typically 100R

POWER/CURRENT CONSUMPTION 60W 0.22A (53W) Idle

Height 105mm (4″)

Width 450mm (17 3/4″)

Depth 400mm (15 3/4″)

Weight 10kg (22lbs)
