QED QX16/2 and QX16/4 LSZH Speaker Cable
$649.00 – $2,699.00
QED QX16/2 and QX16/4 PE Outdoor Speaker Cable
$1,699.00 – $2,999.00
$599.00 – $2,699.00
Flame Retardant PVC

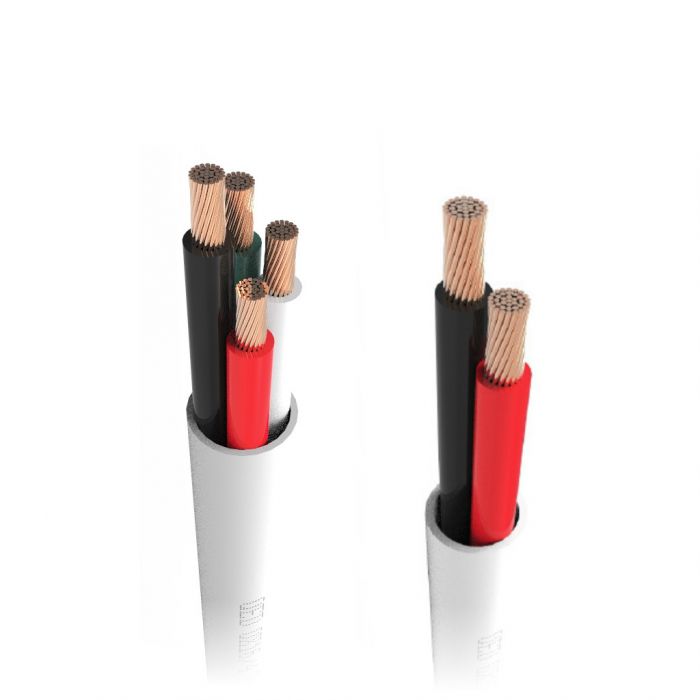

QX16/2 and QX16/4 PVC are high performance and exceptional quality installation speaker cables with a flame retardant PVC outer sheath. They are designed to deliver excellent levels of performance vs cost in all multi-room and home cinema installations where low smoke zero halogen (LSZH) cables are not specified. For installations which require LSZH cables please see QX16/2 and QX16/4 LSZH
Large cross-sectional area of high purity copper conductors
Ensures good performance levels are maintained even on longer runs
Sequentially metre marked – counting down so you always know what you have left on the reel or in the box
PVC Flame retardant high performance outer jacket
Colour-coded conductor sheaths
Fully tested flame retardant design meets and exceeds IEC60332-1
Full test report available on request
RoHS2 Compliant
| Conductor Size | 16 AWG |
| Conductor Construction | 30/0.26 |
| Conductor Resistance | 13.3 Ω/km |
| Stranded Diameter | 1.64 mm |
| Insulation Colour | |
| 16/2 | Red, Black |
| 16/4 | Red, Black, White, Green |
| Dielectric Strength | 600 kV AC |
| Jacket Material | PVC |
| Outside Diameter | |
| 16/2 | 6.20 mm |
| 16/4 | 7.20 mm |
| Jacket Colour |
White |
| Weight | |
| 16/2 | 58 kg/km |
| 16/4 | 98 kg/km |
