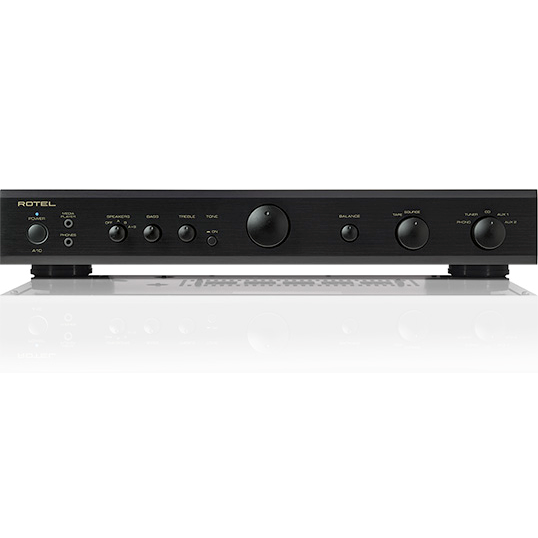

Rotel A10

$699.00$799.00

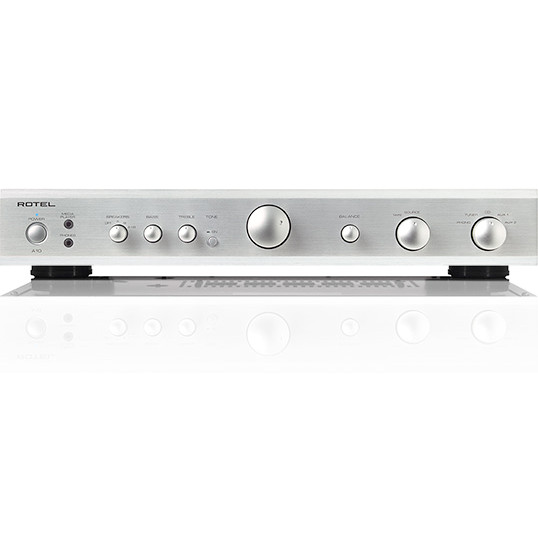

MID WINTER CHRISTMAS SALE! IN SILVER ONLY AT THIS PRICE!

The A10 is a 40-watt per channel integrated amplifier that will satisfy the audio purist who doesn’t require high power output or digital streaming capability. Its straightforward operation is refreshing and its performance is a pleasure to listen to

If you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the A10 integrated amplifier. The A10 is all about maximum performance for the price. Its design strips away added features that increase the overall cost and can detract from your musical enjoyment.

Simple to operate and a pleasure to listen to, the A10 has connectivity for all your listening sources including an analogue media input (3.5mm mini-jack) for iOS devices or other media players, a CD input, a MM phono input in case your taste runs to classic LPs, a Tuner input to listen to your favourite radio stations and two Aux inputs for other analogue source devices.

Power2 × 40 Watts of robust power

Class ABClass AB amplifier design

TransformerHigh current power supply

TurntableMoving magnet phono input for turntable connection

Engineered with care.

A10 Internal View

Composants

Dimensions (W × H × D)
430 × 72 × 342mm
17″ × 2.9″ × 13.5″
Front Panel Height
60mm (2.36″)
Power Requirements
240V, 50Hz
Power Consumption
220W
Net Weight
5.9kg (13lbs.)
BTU Rating (4Ω, 1/8th power)
311 BTU/h
Continuous Power Output
40W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%
Frequency Response
Line Level Inputs: 10Hz – 40kHz ±1dB
Phono Input: 20Hz – 15kHz ±0.3dB
S/N Ratio (IHF “A” Weighted)
Line Level Inputs: 100dB
Phono Input: 80dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%
Damping Factor
180
Speaker Impedance
4Ω minimum
Input Sensitivity
Line Level Inputs: 150mV
Phono Input (MM): 2.5mV
Input Impedance
Line Level Inputs: 24kΩ
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs: 5V
Phono Input: 180mV
Preout Level
1V
Output Impedance
470Ω
Tone Controls
±6dB at 100Hz / 10kHz
