Sale!

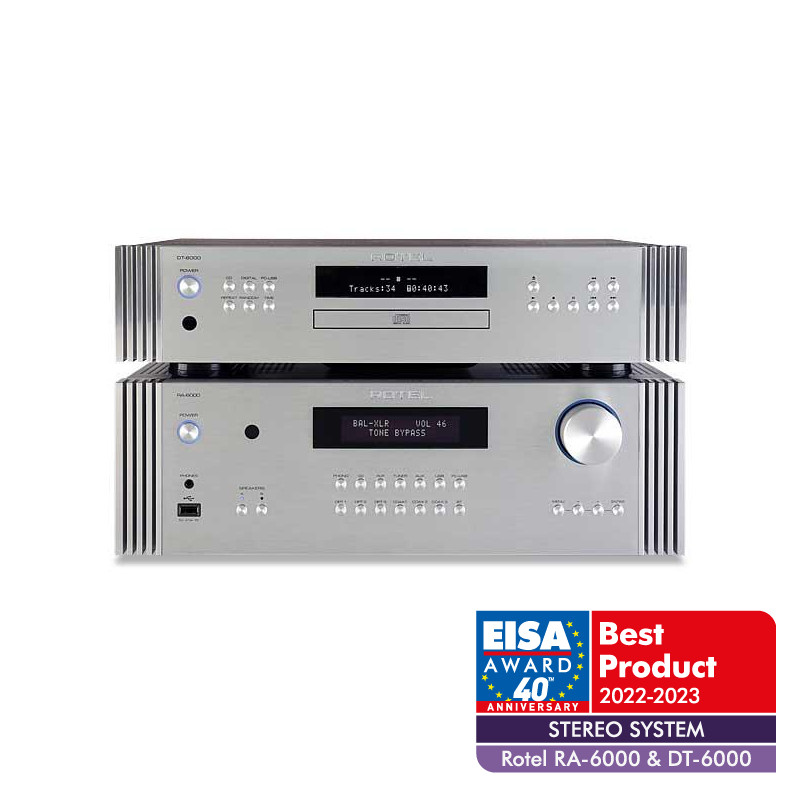

Rotel DT-6000/RA-6000 CD Player/Amplifier Combo

Original price was: $13,098.00.Current price is: $10,799.00.

LIMITED STOCK AT THIS PRICE

The trend for ‘anniversary’ products – witness the plethora of celebratory hardware on display at this year’s High End show – continues with Rotel’s new Diamond Series. Released to mark 60 years since the brand launched, it comprises the RA-6000 integrated amplifier and DT-6000 CD player. Not the hefty additions to the Michi lineup you might have expected, these are instead very much classic Rotel designs (fitting, as the traditionalist brand is not one to hop on every new fad that comes along) albeit with trickle-down technology from its flagship stablemates. ~ hi-finews

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested.  A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

RA-6000 Spec

Intermodulation Distortion
(60Hz:7kHz, 4:1)
<0.03%
Damping Factor
600
Input Sensitivity
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
Input Impedance
Line Level Inputs (RCA): 5.6kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 4.5V
Phono Input: 52mV
Preout Level
1.9V
Output Impedance
100Ω
Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested

DT-6000 Spec

Dimensions (W × H × D)
431 × 104 × 320mm
17″ × 4″ × 12.6″
Front Panel Height
2U / 88.1mm (3.5″)
Power Requirements
120V, 60Hz
Power Consumption
25W
Standby Power Consumption
<0.5W
Net Weight
8.11kg (17.88lbs.)
Intermodulation Distortion
<0.0012%
Total Harmonic Distortion (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%
Frequency Response
20Hz – 20kHz, +0, -0.15dB
10 Hz – 70kHz, +0, -3dB
S/N Ratio (“A” Weighted)
>115dB
Dynamic Range
>99dB
Digital to Analog Converters
ESS 32-Bit/768kHz DAC
Channel Balance
± 0.5dB
Channel Separation
>115dB @ 10kHz
Analog Output Level
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
Analog Output Impedance
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω
Input Sensitivity
0dBfs / 75 Ohms
Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Supoort MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
