Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.
The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

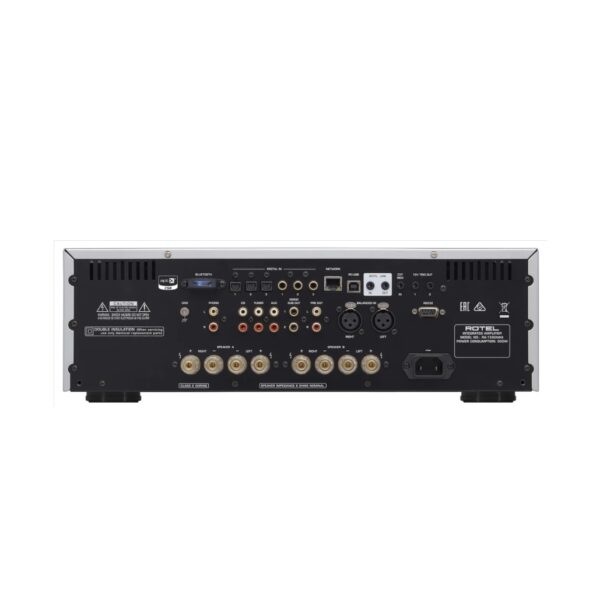

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Convenience, performance and value – the RA-1592MKII delivers.
CONTINUOUS POWER OUTPUT: 200W/Ch (All channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) < 0.008%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz ±0.5dB
Digital Inputs: 10Hz – 90kHz ±2dB
Phono Input: 20Hz – 20kHz ±0.5dB
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
DAMPING FACTOR: 600
INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 52mV
PREOUT LEVEL: 1.9V
OUTPUT IMPEDANCE: 100Ω
TONE CONTROLS: ±12dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS: LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit /96 k Hz)
USB Audio Class 2 (up to 32-bit/384 k Hz)
DSD and DoP support
MQA and MQA Studio (up to 24-bit / 384k Hz )
DIMENSIONS (W × H × D): 431 × 144 × 425mm
FRONT PANEL HEIGHT: 3U / 132.6mm (5.25″)
POWER REQUIREMENTS: 230V, 50Hz
POWER CONSUMPTION: 500W
STANDBY POWER CONSUMPTION: <0.5W
NET WEIGHT: 17.63Kg
Warranty: 2yrs
