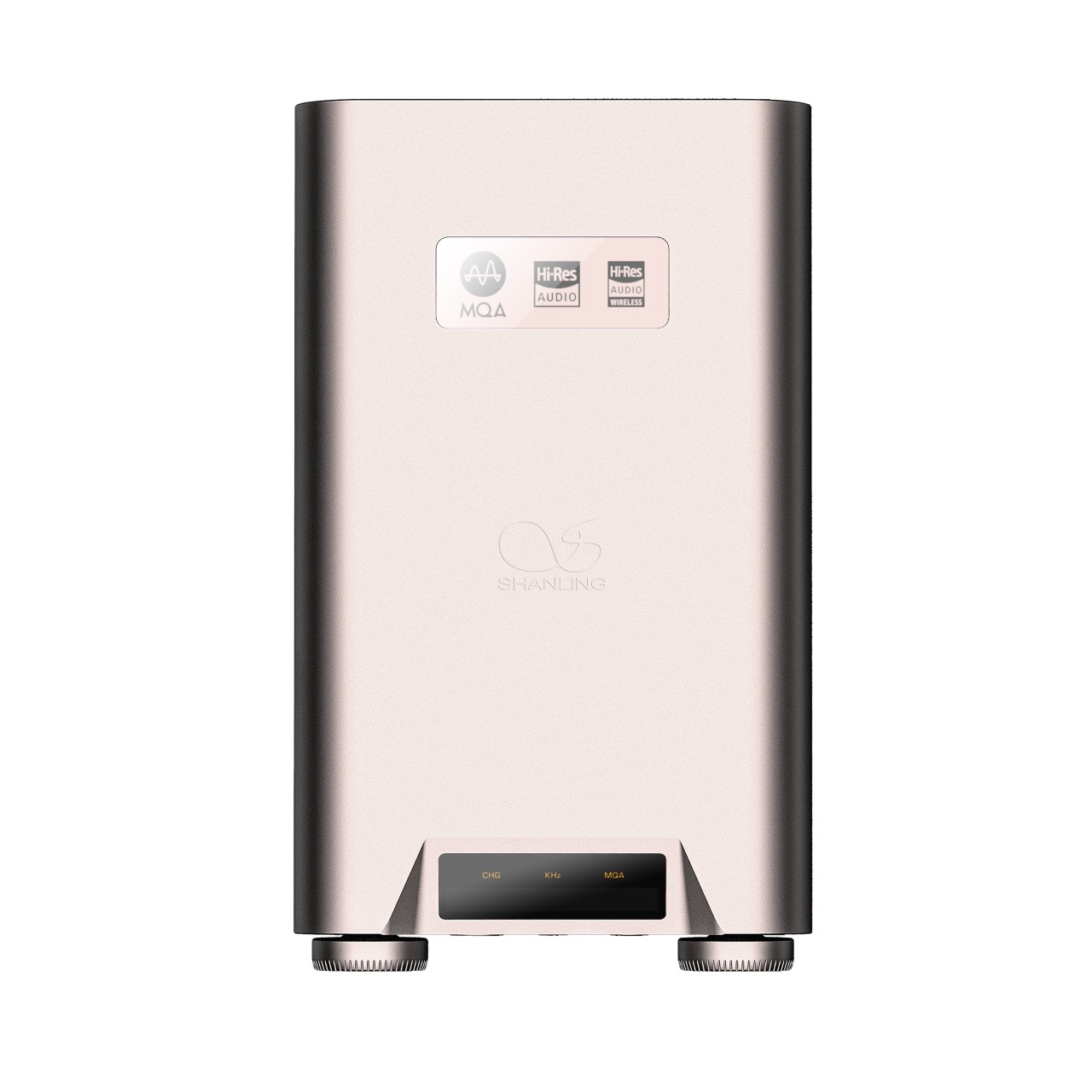

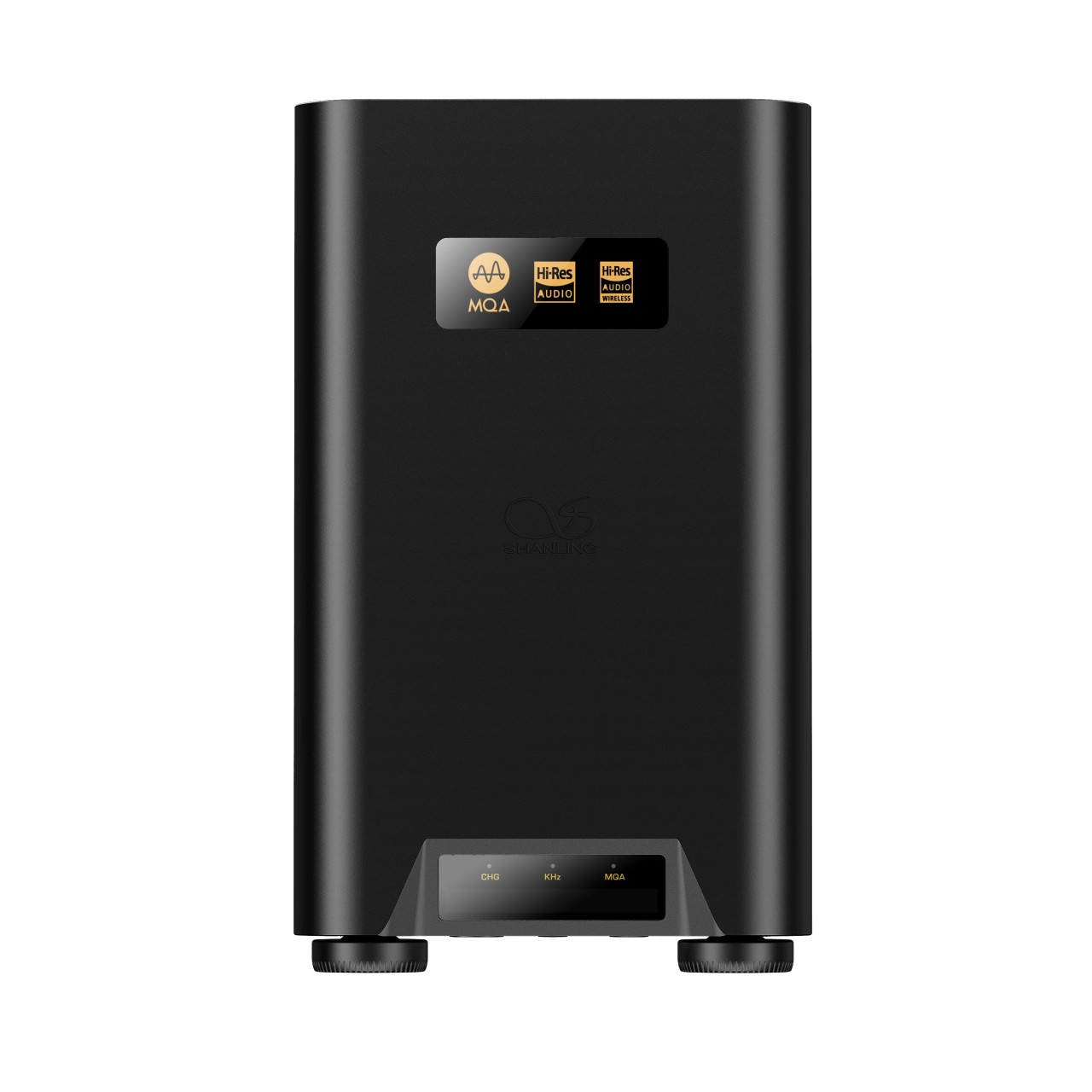

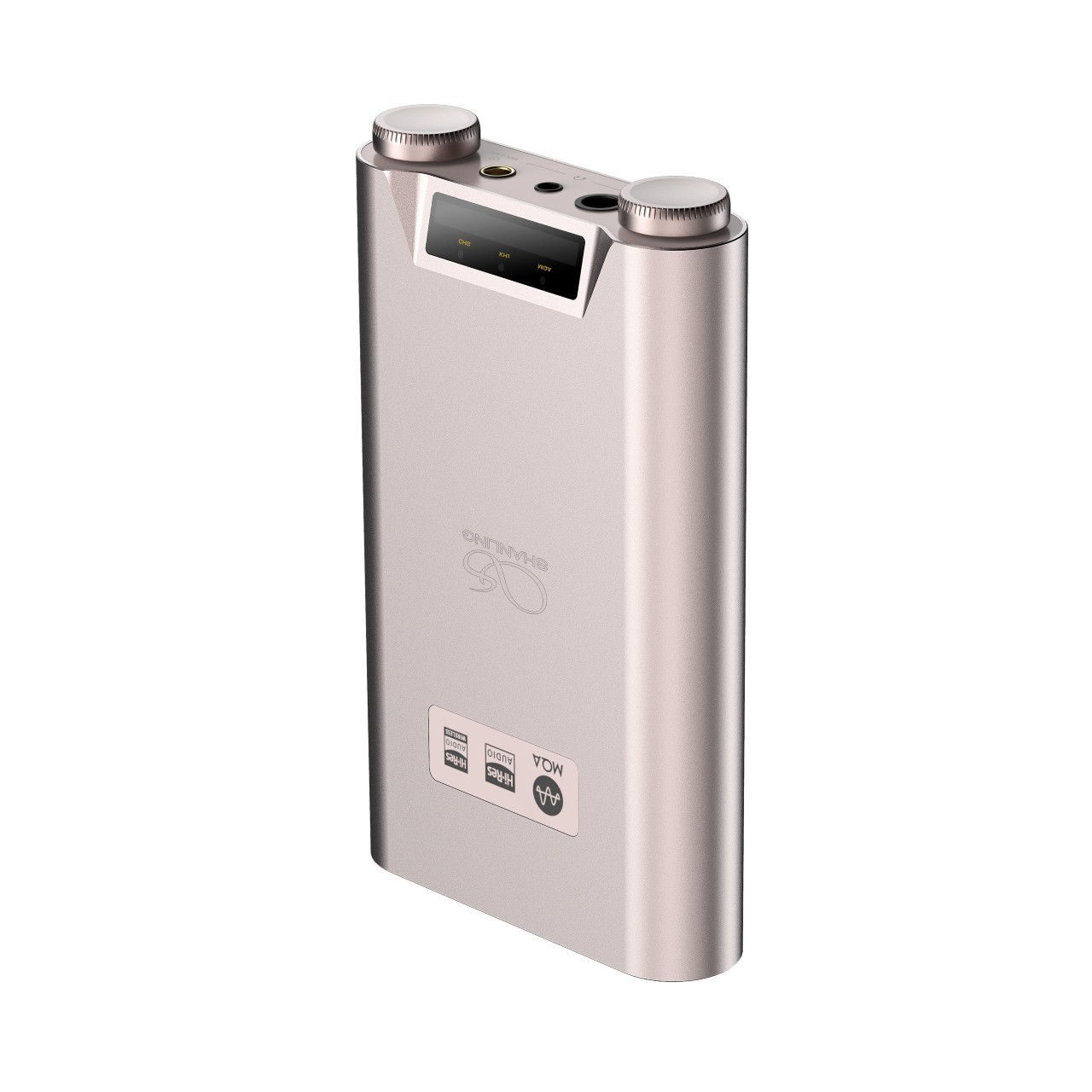

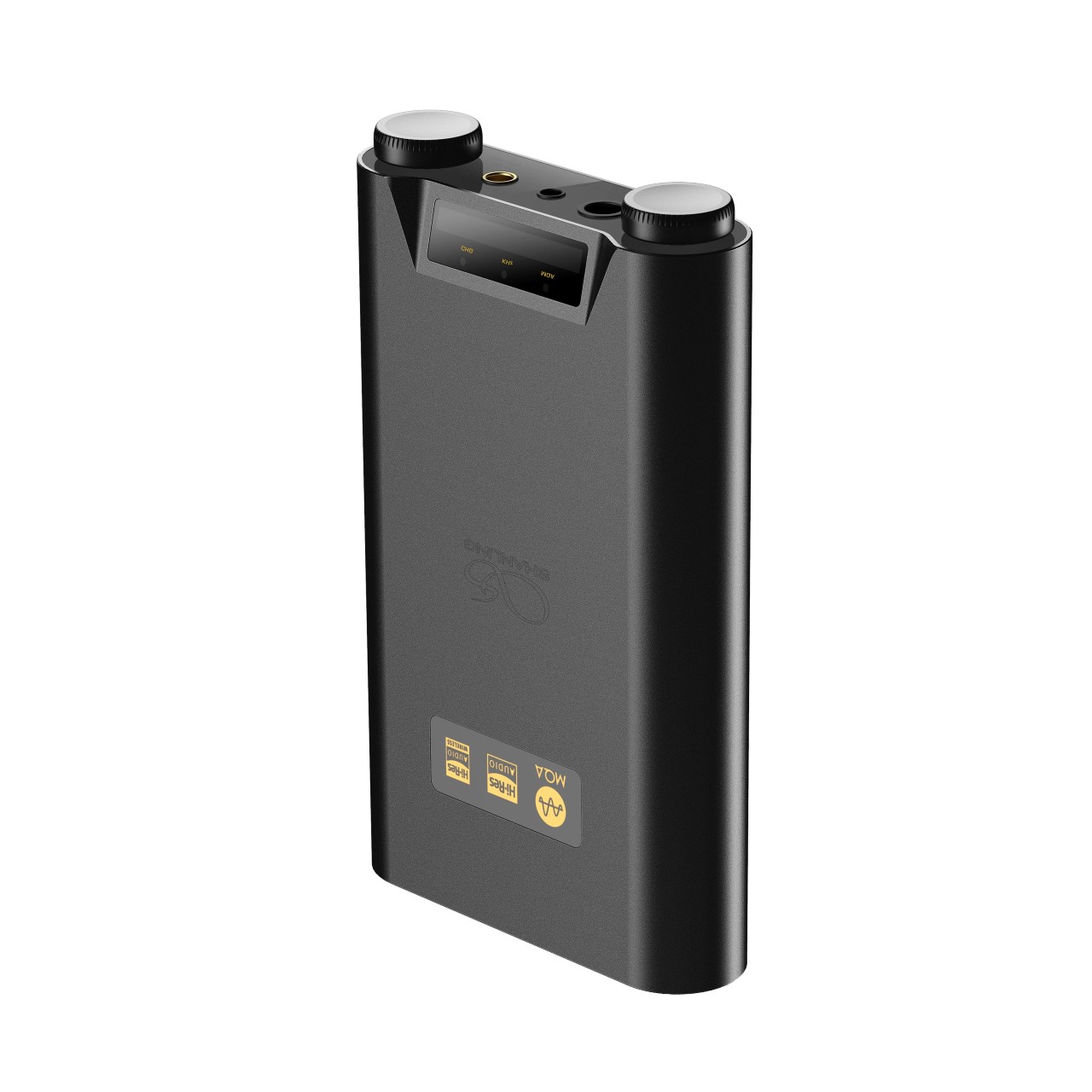

Shanling H7 Portable DAC/AMP

$1,399.00 – $1,799.00

DISPLAY UNIT ONLY AT THIS PRICE IN SILVER!

H7 is the first Shanling audio design built around the new generation of AKM’s flagship DAC system. The Shanling H7 combines AK4191EQ Delta-Sigma modulator with AK4499EX DAC, splitting the Digital-to-Analog process between these two chips for improved performance in both do-mains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC.

Hi there! How can we be of assistance?

EXCELLENT AK4499EX DAC CHIP & AK4191EQ DELTA-SIGMA MODULATOR

H7 is the first Shanling audio design built around the new generation of AKM’s flagship DAC system. The Shanling H7 combines AK4191EQ Delta-Sigma modulator with AK4499EX DAC，splitting the Digital-to-Analog process between these two chips for improved performance in both do-mains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC.

UNIQUE BUILT-IN PLAYER

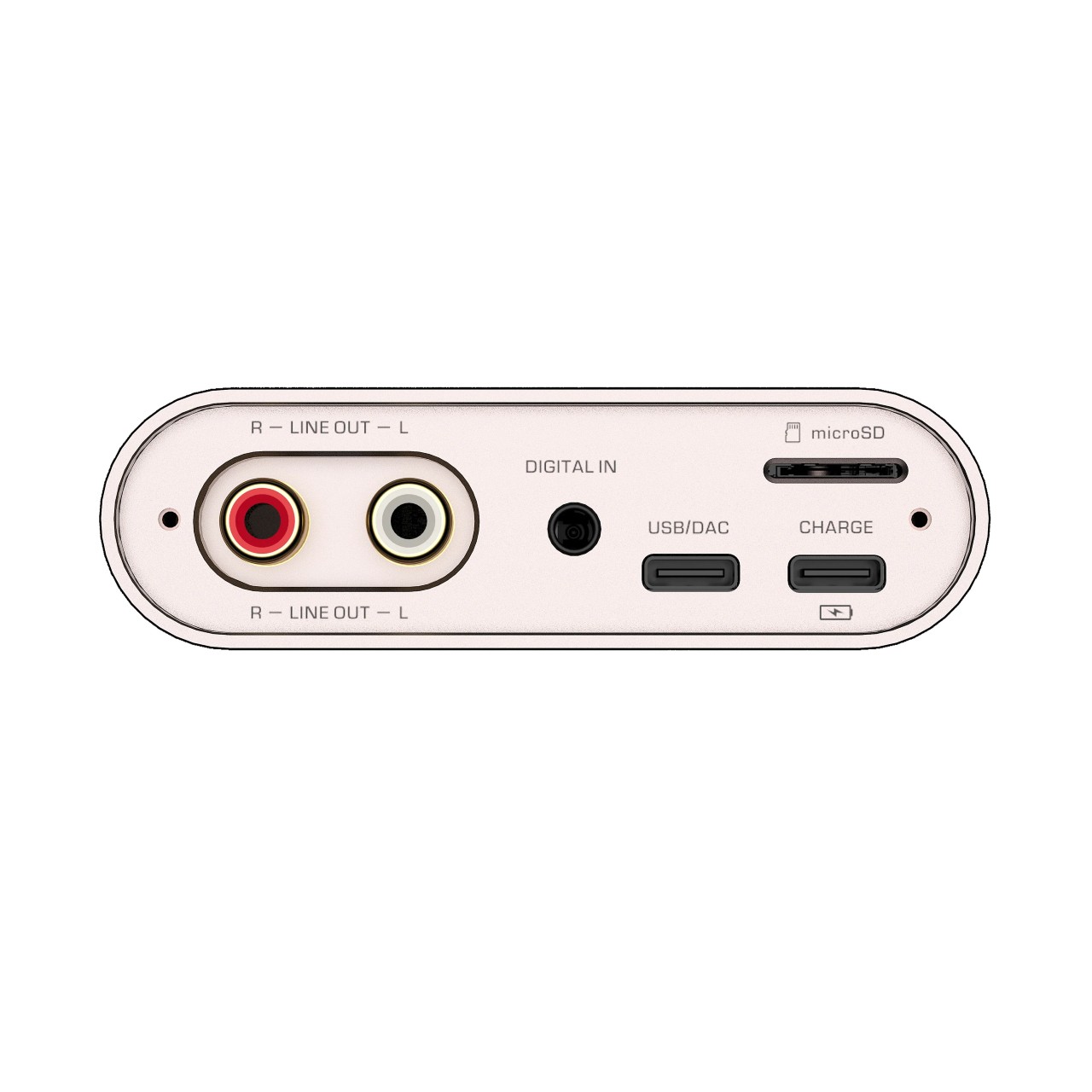

Thanks to the addition of a MicroSD card slot, H7 is capable of direct lossless playback, in the highest quality and without any cables or Bluetooth signal degradation. Users can pair H7 with our Eddict Player app to gain full control over their music libraries.

HI-FI GRADE USB & BLUETOOTH 5.0 INPUT

Equipped with a new generation of the highly-acclaimed USB chipset, 3rd-generation XMOS XU316, the Shanling H7 can ensure the top-quality digital input. The 16-core audio solution also provides a stable asynchronous connection for high-fidelity sound and full support for Hi-Res playback of PCM, DSD and MQA files. In addition, the H7 Amplifier features Bluetooth 5.0 input for convenient wireless sound, meaning that it is easy for a connection to users’ phone or tablet.

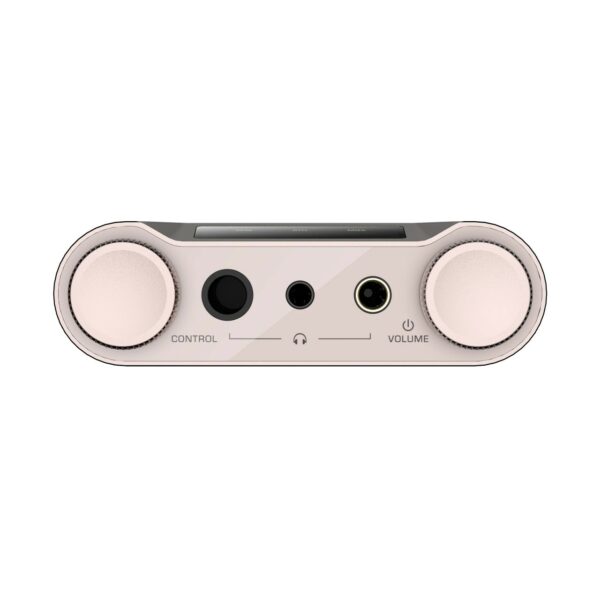

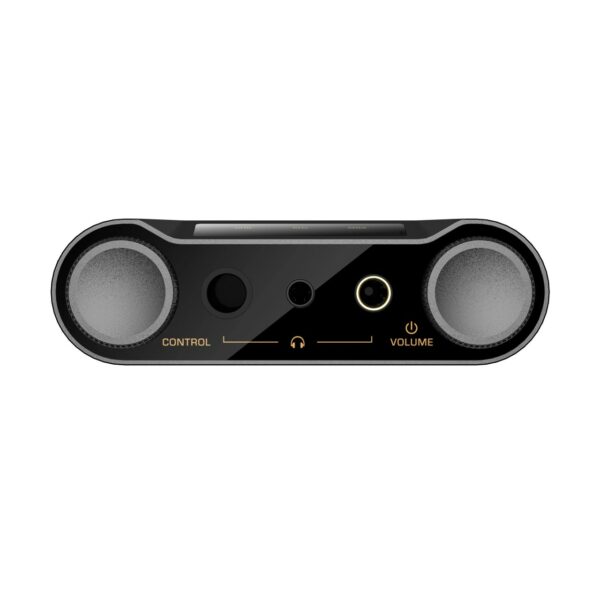

THREE HEADPHONE OUTPUTS & THREE GAIN LEVELS

H7 utilizes three levels of amplifier gain, assuring an ideal match with a wide range of headphones. The H7 amplifier characterizes the lowest gain for a hiss-free playback with the most sensitive in-ear earphones. Besides, this device features the high and unleash its powerful 1.3W output, feeding even the most demanding audiophile headphones.

LONG-LASTING BATTERY & ADVANCED POWER MANAGEMENT

Utilizing pair of industry standard 18650 batteries, for a combined 6800 mAh capacity, the Shanling H7 equipped with a dedicated PMU chip for advanced power management. This management is conducive to prolonging the battery life for continuous playback and overall improving lifespan of the batteries.

– Excellent AK4499EX DAC chip & AK4191EQ Delta-Sigma Modulator
– Unique Built-In Player
– Hi-Fi Grade USB & Bluetooth 5.0 Input
– Three Headphone Outputs & Three Gain Levels
– Long-Lasting Battery & Advanced Power Management

Dimensions

142 x 85 x 25 mm

Weight

352.5 g

Screen

1.44-inch Screen

System

Open Android 10

Audio formats

DSD(“.iso”,”.dsf”,”.dff”) / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS

Hi-Res Support

32 bit / 768 kHz, DSD 512, MQA 8x

Gain Setting

Three Level Setting

Storage

MicroSD Card Slot, up to 2TB

Digital Filters

6 Preset Filters

Battery

2x 18650

Battery Capacity

6800 mAh

Battery Life

Up to 10h SE / 8H BAL

Bluetooth Codec Support

LDAC / AAC / SBC

Output Level

•RCA Output: \
•Single-Ended Output：
Low Gain： 28mW @32 Ohm
Medium Gain: 112mW @32 Ohm
High gain： 450mW @32 Ohm
•Balanced Output：
Low Gain： 87mW @32 Ohm
Medium Gain: 348mW @32 Ohm
High gain： 1300mW @32 Ohm

Frequency Response

 •RCA Output: 20Hz – 40kHz (-0.2dB)
•Single-Ended Output：20Hz – 40kHz (-0.2dB)
•Balanced Output：20Hz – 40kHz (-0.2dB)

THD+N

 •RCA Output: 0.0006%
•Single-Ended Output：0.0009%
•Balanced Output：0.0007%

Dynamic Range

•RCA Output: 121dB
•Single-Ended Output：121dB
•Balanced Output：123dB

Signal-to-noise

•RCA Output: 121dB
•Single-Ended Output：121dB
•Balanced Output：123dB

Output impedance

•RCA Output: 47KΩ
•Single-Ended Output：<1 Ohm
•Balanced Output：<1 Ohm

Channel separation

•RCA Output: \
•Single-Ended Output：75 dB @ 32 Ohm
•Balanced Output：115 dB @ 32 Ohm

Noise

•RCA Output: \
•Single-Ended Output：>113 dB(<1.5 uV)（Low Gain）
•Balanced Output：>111 dB(<1.5 uV)（Low Gain）
