Product type
- Streamer
- DAC
- Headphone amplifier
Inputs
- 1x RJ45
- 1x Coaxial
- 1x Optical Toslink
- 1x USB-C
- 2x USB-A
Outputs
- 1x Single-ended stereo RCA
- 1x Balanced stereo XLR
- 1x HDMI I2S
- 1x Coaxial
- 1x Optical Toslink
- 1x 6.35mm jack headphone output
Wireless connectivity
- Wifi 6 Dual-band 2.4G/5G
- Bluetooth 5.2
DAC Chips
Touch screen
OS
Supported Bluetooth codecs
- LDAC / aptX HD / aptX Adaptative / aptX Low-Latency / aptX / AAC / SBC
Supported sampling rates
- PCM 32bit 768kHz
- DSD512
- MQA
Supported audio formats
- DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, CUE
Headphone output power
- Low gain: 19mW @ 32Ω
- Medium gain: 180mW @ 32Ω
- High gain: 1015mW @ 32Ω
- High gain: 132mW @ 300Ω
Output level
Frequency response
Total harmonic distortion more noise (THD+N)
- RCA: 0.0003%
- XLR: 0.0003%
- Jack 6.35mm: 0.0013% @ 32Ω
Dynamic range
- RCA: 118dB
- XLR: 121dB
- Jack 6.35mm: 117dB @ 32Ω
Signal-to-noise ratio (SNR)
- RCA: 0.0003%
- XLR: 0.0003%
- Jack 6.35mm: 0.0013% @ 32Ω
Channel separation
- RCA: 117dB
- XLR: 117dB
- Jack 6.35mm: 70dB @ 32Ω
Storage capacity
Output impedance
General
- Dimensions: 280 x 280 x 110mm
- Weight: 6.4kg
- Color: Silver / Black
Package
- 1x Shanling SM1.3
- 1x Remote control
- 1x USB-A to USB-C cable
- 1x Power cable
- New Android Platform & Upgraded CPU
- Direct Access to Streaming Services
- Touch Screen & Companion App
- Full Wi-Fi & Bluetooth Connectivity
- Flagship AKM AK4499EX DAC
- XLR & RCA Line-Out & Pre-Out
- I2S, Coaxial, Optical Digital Output
- Lossless Playback from USB Drives
Unparalleled Processing Power
At the heart of the SM1.3 is the Rockchip RK3568 CPU, paired with a brand-new Android 12 OS, ensuring smooth and efficient performance. With 4GB of RAM and 64GB of internal storage (expandable with an internal SSD slot), the SM1.3 is built to handle demanding audio applications and deliver a seamless user experience.

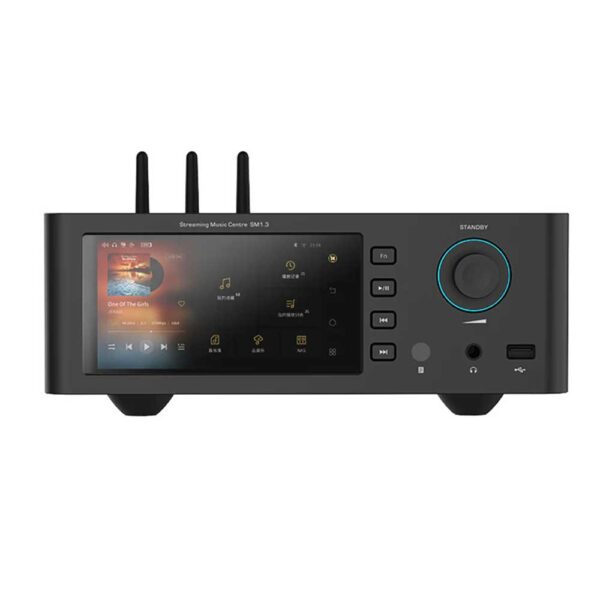

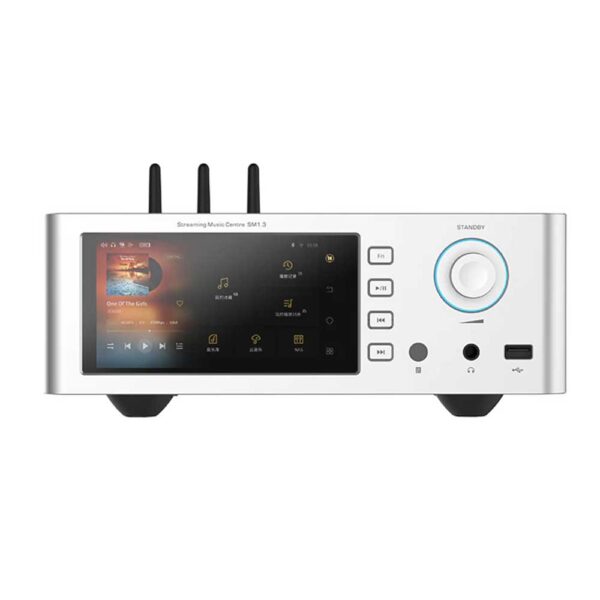

High-Definition Display & Control
Equipped with a 6-inch 2160 x 1080 touch LCD, the SM1.3 offers intuitive control and crisp visuals. With the infrared remote and the new Eddict Controller Companion app, managing your audio setup has never been easier, whether you’re near or far from your device.
Premium DAC & Amplifier System
The SM1.3 features the renowned AKM AK4499EX + AK4191 DAC system, delivering exceptional audio clarity and detail. Paired with the TPA6120A2 headphone amplifier, it provides up to 1W@32Ω power output, allowing for a rich, dynamic sound experience that meets the needs of serious listeners.

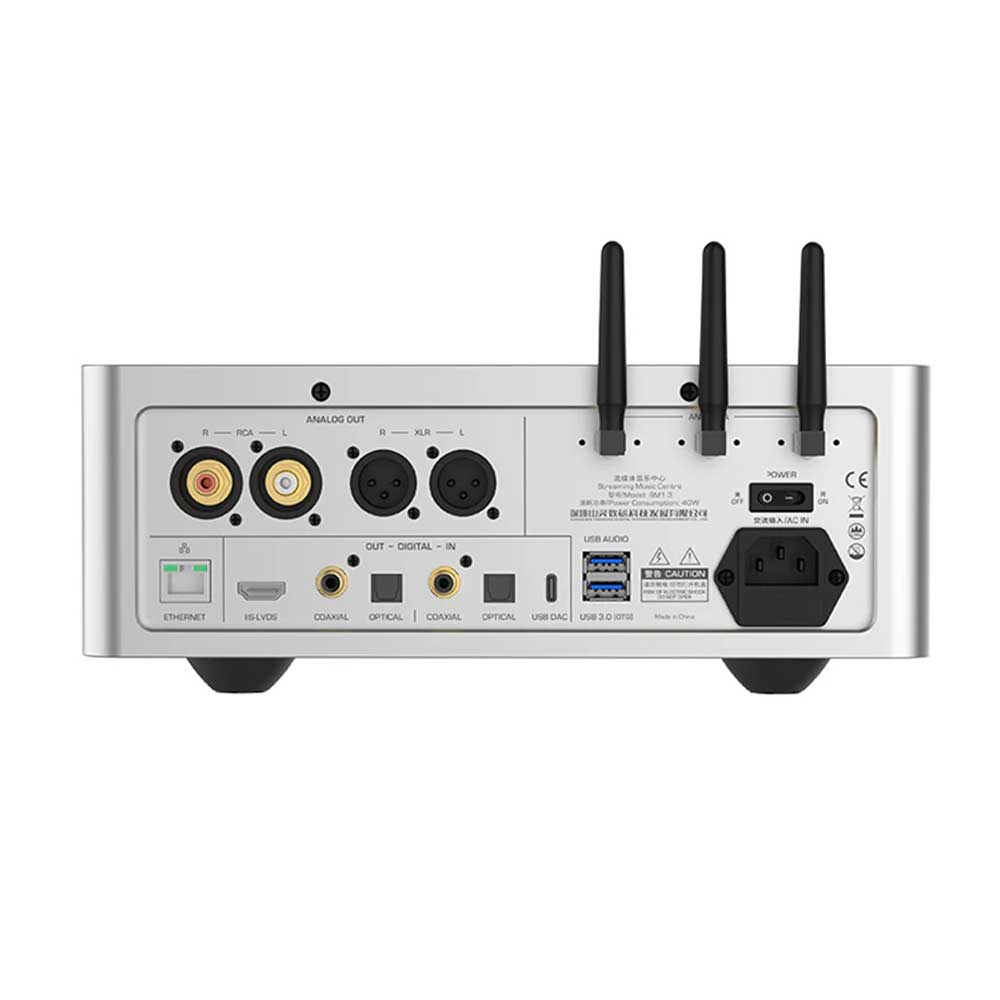

Flexible Connectivity
This device supports a wide range of inputs and outputs, including 6.35mm, RCA, XLR analog outputs, as well as coaxial, optical, USB Audio, and I2S configurable output options. The XMOS XU316 USB input, dual-band Wi-Fi, and Ethernet connectivity further enhance its versatility, making it adaptable to various audio environments.
Hi-Res Audio Support
With support for 32-bit/768kHz and DSD512, the SM1.3 is designed for audiophiles who want to hear every nuance. From high-res streaming to premium DAC performance, this device ensures that every detail in your music is delivered with precision and depth.
